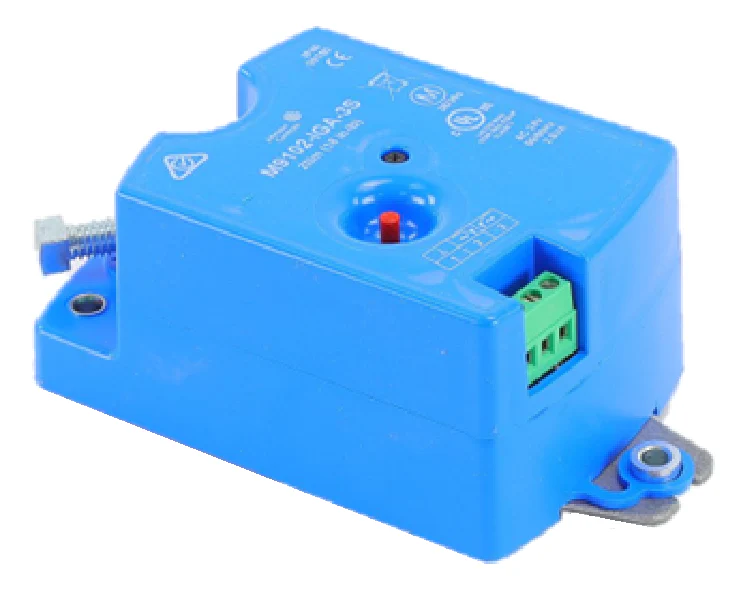

Johnson Controls M9102-IGA-3S Actuator
The Johnson Controls M9102-IGA-3S Actuator is a professional-grade, non-spring return direct coupled actuator engineered for precise control of VAV boxes and small-to-medium HVAC dampers. This unit provides a reliable 18 lb-in torque and is specifically designed for 24Vac floating control or two-position operation. Unlike standard floating models, the IGA model features an automatic timeout function, which shuts off the motor after a set time delay to prevent unnecessary wear and extend the service life of the drive train.
This synchronous motor-driven actuator ensures consistent 30-second travel time regardless of the load, delivering predictable performance for Variable Air Volume and Temperature (VVT) zone applications. The M9102-IGA-3S features M3 screw terminals for secure field wiring and a single-screw coupler that simplifies installation on round shafts up to 1/2 inch or 3/8 inch square shafts. With a 100,000 cycle rating and an integrated magnetic clutch to protect gears during stall conditions, this actuator is a staple for contractors prioritizing long-term reliability in commercial environments.
Key Benefits
- Enhanced Motor Protection: Integrated floating control with timeout prevents motor burnout by automatically cutting power after the rotation cycle.
- Load-Independent Timing: The synchronous drive ensures a constant 30-second stroke, critical for precise system balancing.
- Quiet Performance: Rated at a maximum of 35 dBA, making it ideal for noise-sensitive open-ceiling or office installations.
- Simplified Setup: Equipped with a manual gear release button for quick manual adjustments and field commissioning without power.
- Durable Construction: Features a high-strength magnetic clutch and is rated for 100,000 full-stroke cycles of maintenance-free operation.
Common Questions
Is the M9102-IGA-3S compatible with my existing VAV controller?
Yes, it is designed for use with most 24Vac controllers. Because it includes an internal automatic shutoff (timeout), it is particularly useful with controllers that do not have a software-based stall timeout.
Can this actuator be used on square damper shafts?
The universal single-screw coupler is compatible with 3/8-inch square shafts and round shafts ranging from 3/8 inch to 1/2 inch in diameter.
What is the difference between the -2S and -3S models?
The -3S model utilizes M3 screw terminal blocks for electrical connections, whereas the -2S model comes with a pre-wired plenum cable.
