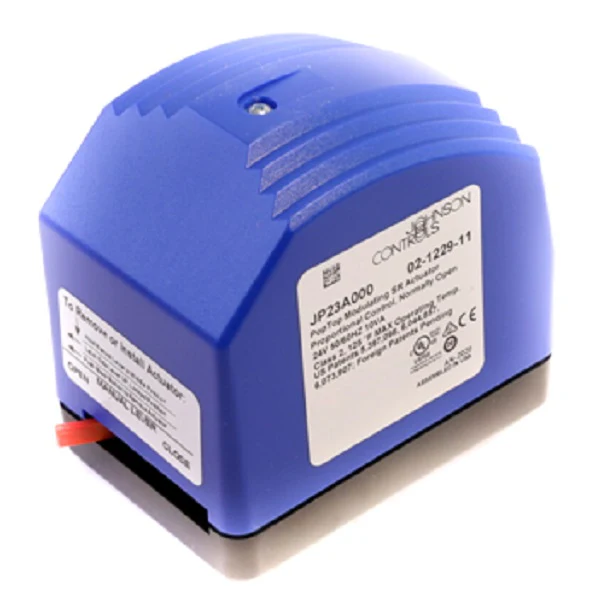

Johnson Controls JP23A000 Actuator Motor
Integrating a Johnson Controls JP23A000 Actuator Motor into your HVAC system ensures precise modulation for J Series Electric Zone Valves. This 24VAC proportional spring return actuator is engineered for high-performance fluid control in commercial and residential hydronic applications. It serves as the direct Johnson Controls AP23A000 replacement, allowing for seamless field upgrades without reconfiguring existing setups. The unit features versatile field-selectable control signals, supporting 0-10VDC, 0-5VDC, 5-10VDC, or 4-20mA inputs for maximum flexibility with building automation systems. With its normally open fail-safe mechanism, this motor provides reliable mechanical spring return upon power loss, protecting critical equipment from stagnation or freezing. Designed to handle media temperatures from 32-200°F, this proportional control actuator delivers accurate modulating flow control without a time-out feature, ensuring consistent positioning for optimized thermal comfort and HVAC zone valve efficiency in complex piping configurations.
Key Benefits
- Broad Compatibility: Supports multiple proportional input signals, making it an ideal choice for J Series Electric Zone Valves and global BAS standards.
- Mechanical Fail-Safe: Reliable normally open spring return ensures the valve returns to its safe position during power interruptions.
- Direct Replacement: Specifically designed to replace the AP23A000 actuator, simplifying maintenance and reducing downtime for technical crews.
- Thermal Resilience: Built to withstand media temperatures up to 200°F, suitable for a wide range of heating and cooling applications.
- Certified Reliability: UL and CE certifications confirm the unit meets stringent industrial actuator performance and safety standards.
Common Questions
Is the JP23A000 a direct drop-in for the AP23A000?
Yes, this is the official replacement model. It maintains the same physical footprint and electrical requirements for a straightforward swap.
What happens to the valve position during a power failure?
This actuator features a mechanical spring return that defaults to the normally open position, ensuring flow is maintained even if the control signal or power is lost.
Does this actuator require periodic calibration?
The proportional circuitry is designed for stability; however, ensure your controller is outputting the correct 0-10VDC or 4-20mA signal to match the valve's full stroke range.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $342.33
-65%$342.33
$119.82Johnson Controls JP23A000 Actuator Motor
