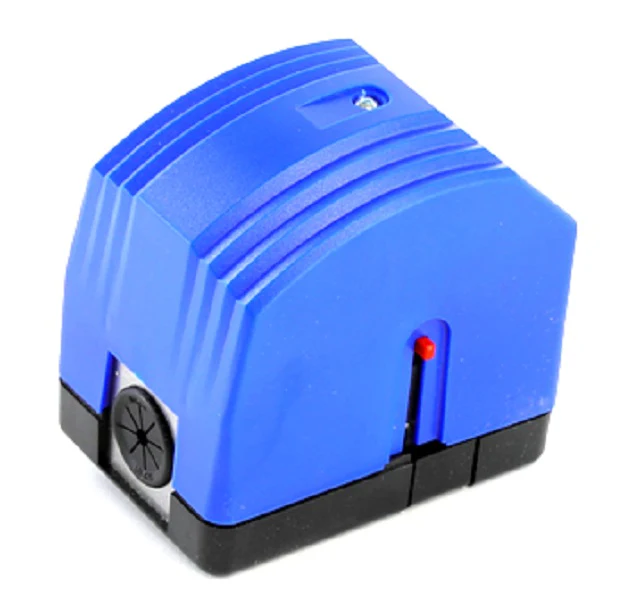

Johnson Controls JP13A000 Motor Actuator
The Johnson Controls JP13A000 Motor Actuator is a precision-engineered proportional spring return actuator designed for reliable control in demanding HVAC applications. Operating on 24Vac power, this versatile unit supports multiple control signals, including 0-10Vdc, 0-5Vdc, 5-10Vdc, and 4-20mA, allowing for seamless integration into various building automation systems. As the direct replacement for AP13A000, the JP13A000 features a normally closed configuration without a time-out mechanism, ensuring consistent performance during power loss or system resets. This modulating valve actuator is built for longevity and field accuracy, providing the high-torque output necessary for regulating water or steam flow. Technicians will find the spring return failsafe critical for protecting equipment in the event of a power interruption. Whether you are performing a Johnson Controls actuator replacement or a new installation, this unit offers the technical reliability required for commercial climate control environments.
Key Benefits
- Multi-Signal Compatibility: Accepts 0-10Vdc, 4-20mA, and other proportional inputs for maximum field flexibility.
- Direct Fit Retrofit: Engineered as the exact replacement for Johnson Controls AP13A000 models, reducing installation downtime.
- Failsafe Security: Mechanical spring return ensures the valve or damper returns to a normally closed position during power failure.
- Continuous Operation: Designed without a time-out feature to maintain constant positioning based on the controller signal.
- Rugged Construction: Built to withstand the temperature fluctuations and duty cycles common in commercial mechanical rooms.
Common Questions
Is the JP13A000 compatible with older 40mA or 135-ohm controllers?
This model is optimized for modern 4-20mA proportional and 0-10Vdc signals. For older resistance-based systems, verify if a signal converter is required or if the controller can be reconfigured for voltage output.
What is the difference between the JP13A000 and the discontinued AP13A000?
The JP13A000 serves as the current direct replacement actuator, maintaining the same footprint and electrical specifications to ensure a drop-in fit without needing to modify existing mounting brackets.
Can this actuator be used in normally open applications?
This specific model is configured for normally closed operation. For normally open requirements, ensure the linkage or valve body orientation is adjusted accordingly or select the corresponding NO model variant.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $342.33
-65%$342.33
$119.82Johnson Controls JP13A000 Motor Actuator
