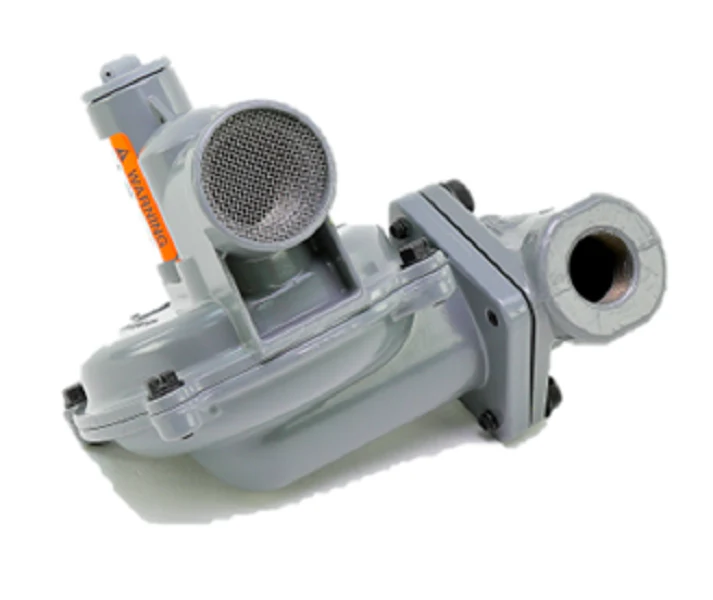

Itron-Actaris B42R-3/4-DRK-GREEN Regulator
The Itron-Actaris B42R-3/4-DRK-GREEN is a high-performance spring-loaded self-operated regulator specifically engineered for residential and light commercial natural gas applications. This model features a 3/4" NPT connection and is equipped with a 5/16" orifice, providing precise pressure reduction and high flow capacity. Designed for superior overpressure protection, the B42R series utilizes a large 1" internal relief valve (IRV) to ensure safe gas management. The dark green spring provides a versatile 6-16" w.c. outlet pressure range, making it ideal for standard appliances and specialized heating equipment. Built with a 6:1 lever ratio and a molded deep convolution diaphragm, this regulator delivers consistent lock-up and exceptional control even during inlet pressure fluctuations. The rugged cast iron valve body and Buna-N valve seat ensure tight shutoff and reliable performance in demanding field conditions.
Key Benefits for HVACR Contractors- Internal Relief Protection: Includes a high-capacity 1" internal relief valve to mitigate overpressure scenarios safely.
- Precise Pressure Control: The 6:1 lever ratio and 12.6 sq. in. diaphragm provide stability and accurate delivery.
- Optimized Flow: Equipped with a 5/16" aluminum orifice for balanced capacity in light commercial settings.
- Field Flexibility: Features a field-interchangeable dark green spring with an adjustable range of 6 to 16 inches water column.
- Durable Construction: Built with an ASTM A-126 Class A cast iron body and Buna-N seating for industrial-grade durability.
What is the maximum inlet pressure for the B42R series?
The standard Itron B42R supports a maximum inlet pressure of up to 125 PSIG, though specific orifice sizes may limit the maximum operating inlet pressure for optimal performance.
Can this regulator be installed indoors?
Yes, the B42R is suitable for indoor or outdoor installations. However, for indoor use, the 3/4" or 1" threaded vent must be piped to a safe outdoor location per local gas codes.
Is the dark green spring compatible with high-pressure gas systems?
This specific dark green spring is designed for low-pressure inches water column settings (6-16" w.c.). For PSI-to-PSI applications, a high-pressure (HP) variant and specific spring would be required.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $169.49
-65%$169.49
$59.32Itron-Actaris B42R-3/4-DRK-GREEN Regulator
The Itron-Actaris B42R-3/4-DRK-GREEN is a high-performance spring-loaded self-operated regulator specifically engineered for residential and light commercial natural gas applications. This model features a 3/4" NPT connection and is equipped with a 5/16" orifice, providing precise pressure reduction and high flow capacity. Designed for superior overpressure protection, the B42R series utilizes a large 1" internal relief valve (IRV) to ensure safe gas management. The dark green spring provides a versatile 6-16" w.c. outlet pressure range, making it ideal for standard appliances and specialized heating equipment. Built with a 6:1 lever ratio and a molded deep convolution diaphragm, this regulator delivers consistent lock-up and exceptional control even during inlet pressure fluctuations. The rugged cast iron valve body and Buna-N valve seat ensure tight shutoff and reliable performance in demanding field conditions.
Key Benefits for HVACR Contractors- Internal Relief Protection: Includes a high-capacity 1" internal relief valve to mitigate overpressure scenarios safely.
- Precise Pressure Control: The 6:1 lever ratio and 12.6 sq. in. diaphragm provide stability and accurate delivery.
- Optimized Flow: Equipped with a 5/16" aluminum orifice for balanced capacity in light commercial settings.
- Field Flexibility: Features a field-interchangeable dark green spring with an adjustable range of 6 to 16 inches water column.
- Durable Construction: Built with an ASTM A-126 Class A cast iron body and Buna-N seating for industrial-grade durability.
What is the maximum inlet pressure for the B42R series?
The standard Itron B42R supports a maximum inlet pressure of up to 125 PSIG, though specific orifice sizes may limit the maximum operating inlet pressure for optimal performance.
Can this regulator be installed indoors?
Yes, the B42R is suitable for indoor or outdoor installations. However, for indoor use, the 3/4" or 1" threaded vent must be piped to a safe outdoor location per local gas codes.
Is the dark green spring compatible with high-pressure gas systems?
This specific dark green spring is designed for low-pressure inches water column settings (6-16" w.c.). For PSI-to-PSI applications, a high-pressure (HP) variant and specific spring would be required.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
