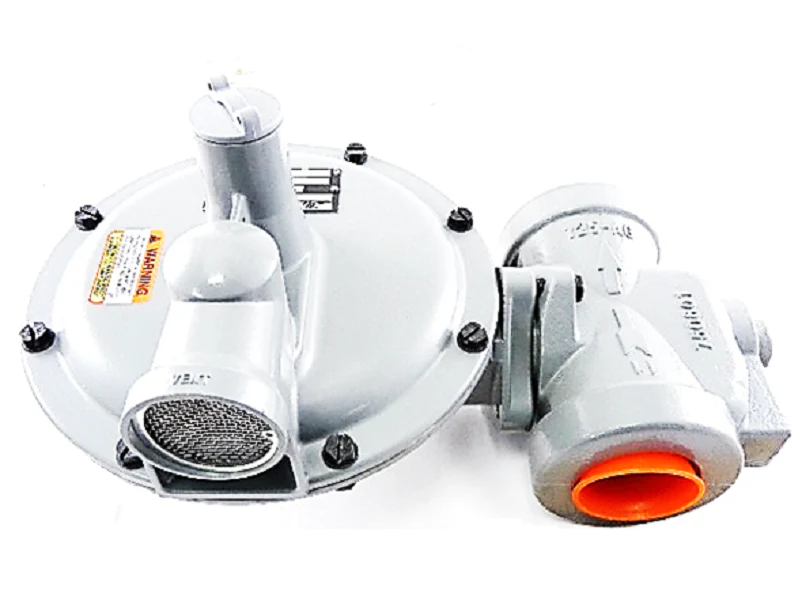

Itron-Actaris B34SR-2 Regulator
The Itron-Actaris B34SR-2 Regulator is a medium-duty commercial gas regulator engineered for high-demand environments where rapid response and precise pressure control are non-negotiable. Designed with a 2-inch NPT connection and an Internal Relief Valve (IRV), this gas pressure regulator effectively manages sudden load changes typical in industrial heating equipment like boilers, furnaces, and gas engines. The unit features a 5/8" x 3/4" orifice and a black adjustment spring calibrated for a 6–9" water column (W.C.) outlet pressure range.
Constructed with a heavy-duty 8-inch diaphragm and an adjustable loading ring, the Itron B34SR series provides a controlled boost at high flow rates while maintaining stability via a precision breather opening. Unlike light-duty alternatives, all critical internal components are fabricated from steel or aluminum to ensure long-term mechanical integrity under HVACR system stress. This self-operated regulator is a standard-tier choice for contractors requiring overpressure protection and consistent fuel delivery for commercial combustion systems.
Key Benefits for Technicians:- Rapid Response Performance: Specifically designed to handle shock problems associated with quick on/off solenoid loads in commercial burners.
- Internal Relief Valve (IRV): Features a 1-inch NPT vent to provide high-capacity overpressure protection without the need for external relief piping in many setups.
- Rugged Build Quality: Utilizes a cast iron valve body and a molded Buna-N and nylon diaphragm for superior durability across industrial temperature ranges.
- Field Versatility: The 6-9" W.C. black spring and the brass orifice are field-interchangeable, allowing for precise site-specific tuning.
- Standardized Connections: 2-inch NPT inlet and outlet connections allow for seamless integration into existing large-bore gas manifolds.
What applications are best suited for the B34SR-2?
This model is optimized for mid-range commercial loads, particularly equipment with high-frequency cycling where maintaining a steady 6-9" W.C. is critical for combustion efficiency.
Does this regulator require a licensed installation?
Yes. Due to the high flow capacities and critical safety nature of natural gas regulators, installation must be performed by a licensed contractor to ensure proper calibration and leak testing.
Can the outlet pressure range be adjusted beyond 9" W.C.?
While the pre-installed black spring is rated for 6-9" W.C., the B34SR series supports various color-coded springs to reach higher or lower pressures if the application requirements change.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
