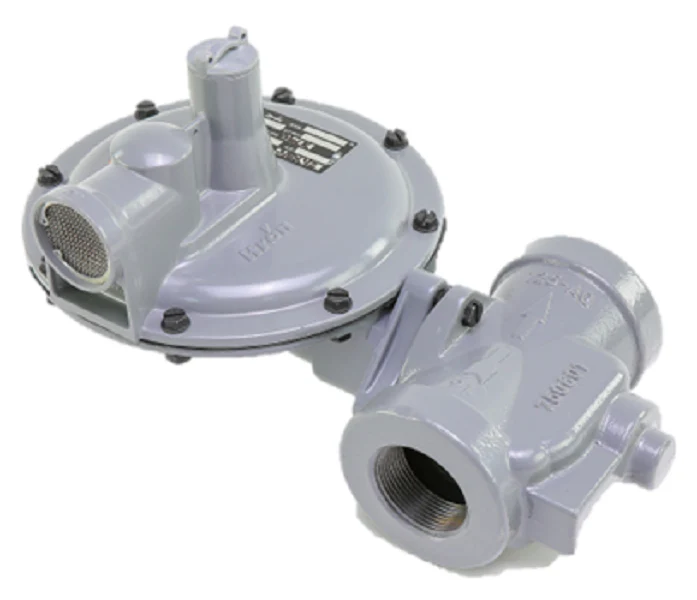

Itron-Actaris B34SR-1 1/2 Regulator
The Itron-Actaris B34SR-1 1/2 Gas Regulator is a self-operated, spring-loaded solution engineered for mid-range commercial and industrial applications. This robust 1.5-inch NPT gas regulator features a high-capacity Internal Relief Valve (IRV) with a 1-inch vent, designed to stabilize delivery pressure in systems with rapid on/off loads, such as gas engines, boilers, and furnaces. Equipped with a 5/8" x 3/4" orifice and a 6-9" w.c. black spring, it provides precise control and a controlled boost at high flows via an adjustable loading ring. Construction details including a Buna-N molded diaphragm, stainless steel lever pin, and an alodined aluminum valve stem ensure consistent performance for critical HVAC gas pressure regulation. This medium-duty commercial regulator is ideal for contractors requiring a reliable natural gas regulator that mitigates shock problems and protects downstream equipment from overpressure spikes.
Key Benefits
- Precision Pressure Stability: Features a controlled-size breather orifice to eliminate pulsation and maintain stable action even at low flow rates.
- Industrial-Grade Durability: Critical components are manufactured from high-tensile cast iron, steel, and aluminum rather than plastic for long-term field reliability.
- Internal Safety Mechanism: The integrated IRV with a 1-inch vent connection provides essential overpressure protection as per ANSI Z21.80 standards.
- Field Serviceability: Designed with interchangeable brass orifices and adjustment springs, allowing for easy adaptation to specific site requirements.
Common Questions
What is the maximum inlet pressure for this configuration?
The Itron B34SR with a 5/8" x 3/4" orifice is typically rated for a maximum operating inlet pressure of 15 PSI to ensure optimal regulation and lock-up performance.
Can this regulator be installed indoors?
Yes, however, when installed indoors, the 1-inch NPT vent must be piped to a safe outdoor location in compliance with NFPA 54 and local mechanical codes.
What does the 'SR' designation signify?
The 'SR' indicates the 'Service Relief' model, which includes a high-capacity internal relief valve to vent excess pressure, as opposed to the 'SN' non-relief version.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
