IO Hvac Controls ZP6-ESP-KIT Control Kit

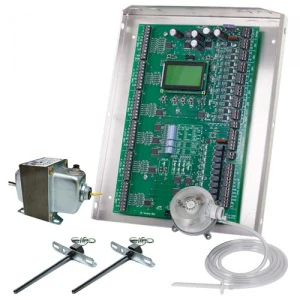

The iO HVAC Controls ZP6-ESP-KIT is a professional-grade 6-zone universal zone control panel designed to streamline forced air zoning for residential and light commercial applications. This comprehensive kit integrates Electronic Static Pressure (ESP) technology, which continuously monitors system pressure via the included static pressure sensor. When static pressure exceeds the user-defined setpoint, the panel automatically modulates non-calling 3-wire zone dampers to bleed off excess air, effectively functioning as an electronic bypass and eliminating the need for a traditional bypass damper. This simplifies HVAC ductwork design and reduces installation time for the technician.
Engineered for maximum HVAC system compatibility, the ZP6-ESP-KIT supports single-stage, multi-stage, heat pump, and dual fuel equipment with up to 4 stages of heating and 2 stages of cooling. The universal zone panel features intuitive slide-switch configuration and a programmable LCD display for real-time monitoring of discharge and return air temperatures. This all-in-one zoning kit includes the control board, a static pressure sensor, two duct temperature sensors (10k ohm), and a 75VA transformer, providing a complete solution for high-performance airflow management without the bulk of mechanical bypass hardware.
Key Benefits- Eliminates Bypass Dampers: Built-in ESP logic manages static pressure by modulating dampers, saving space and reducing material costs.
- Universal Equipment Support: Seamlessly controls dual fuel and multi-stage systems with dedicated terminals for variable speed blowers (DS/BK).
- Expandable Architecture: The base 6-zone configuration can be expanded up to 12 zones using zoning expansion modules.
- Advanced Protection: Integrated high/low limit controls and high/low balance point settings protect the compressor and heat exchanger.
- Simplified Wiring: Features color-coded terminals and slide switches to eliminate complex dip-switch programming.
Does this kit require a specific type of damper?
To utilize the ESP bypass-free functionality, you must use 3-wire 24V motor-actuated dampers (such as the iO MD series). Standard 2-wire dampers will work for basic zoning but cannot provide the modulating relief required to eliminate the bypass damper.
Can I use this with a variable speed air handler?
Yes. The panel includes DS/BK terminals specifically designed to interface with variable speed motors, allowing the board to signal the blower to reduce CFM when fewer zones are calling.
Is a separate transformer required for the panel?
The kit includes a 75VA transformer. It is highly recommended to use this dedicated power source for the panel and dampers rather than drawing from the HVAC equipment's internal transformer to prevent overcurrent issues.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
