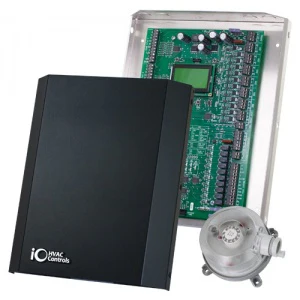

IO Hvac Controls ZP6-ESP Control Kit
The iO HVAC Controls ZP6-ESP is a high-performance 6-zone universal control panel designed for forced air zoning in residential and light commercial applications. This dual-fuel compatible unit supports up to 4 stages of heating and 2 stages of cooling, making it an ideal choice for multi-stage heat pump systems. The standout feature is the integrated ESP static pressure control, which effectively eliminates the requirement for a traditional bypass damper when paired with 3-wire MD series dampers. By continuously monitoring static pressure via the included sensor, the ZP6-ESP automatically bleeds excess air into non-calling zones, maintaining system balance without noisy or inefficient bypass setups.
For large-scale installations, this HVAC zone control kit is expandable up to 12 zones using ZP6-ESP-EP expansion panels. Contractors will appreciate the simplified slide switch configuration and the Graphics Display Module (GDM), which provides real-time data on discharge, return, and outdoor air temperatures. The panel also features dedicated terminals for variable speed blowers (DS/BK), night setback thermostats, and dehumidification pass-through, ensuring maximum flexibility for complex HVAC system integration.
Key Benefits- Eliminate Bypass Dampers: Integrated static pressure sensor logic prevents over-pressurization by modulating non-calling zones, saving installation time and duct space.
- High Compatibility: Seamlessly manages single-stage, multi-stage, heat pump, and dual-fuel equipment.
- Scalable Architecture: Native 6-zone support that easily expands to 12 zones for larger property requirements.
- Advanced Monitoring: Includes discharge air temperature (DAT) sensors to provide high/low limit protection and prevent coil freeze-up or furnace overheating.
- Installer-Friendly Setup: Uses simple slide switches and an intuitive LCD interface for quick field programming without complex software.
Does the ZP6-ESP require a bypass damper?
No. When used with 3-wire dampers, the internal ESP logic manages static pressure, removing the need for a bypass damper and a barometric relief system.
Can I use this with a variable speed blower?
Yes. The panel includes DS/BK terminals specifically designed to signal variable speed fan motors to reduction airflow when only a few zones are calling.
Is this panel compatible with Nest or Ecobee thermostats?
The ZP6-ESP is a universal panel that works with standard 24VAC thermostats, including most smart brands, provided a common wire is used.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
