IO Hvac Controls ZP6-EP Expansion Panel

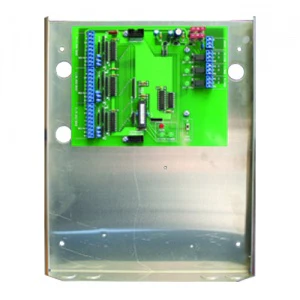

For contractors managing larger residential or light commercial zoning projects, the iO HVAC Controls ZP6-EP Expansion Panel is the standard solution for scaling a system and adding zones to iO-ZP6. This 3-zone module is specifically engineered to integrate with the iO-ZP6 zone control panel via a simple ribbon cable connection, allowing for a seamless transition from a base 6-zone setup to either 9 or 12 zones by daisy-chaining up to two expansion modules. This panel is housed in a rugged, anodized aluminum enclosure designed to match the master controller, ensuring a professional and uniform HVAC zone control system installation.
The iO-ZP6-EP supports single-stage, multi-stage, heat pump, and dual fuel equipment, providing technicians with the flexibility needed for complex retrofits or new builds. Compatible with both 2-wire and 3-wire zone dampers, it simplifies inventory management while maintaining high performance. By utilizing the ZP6-EP 3-zone expansion, you maintain full access to the master panel's advanced logic, including cooling priority and majority wins modes, without the need for redundant hardware. Its intuitive design includes LED status indication for each zone, facilitating rapid troubleshooting and commissioning on the job site.
Key Benefits
- Scalable Architecture: Easily expand from 6 zones up to 12 zones using a high-reliability ribbon cable connection between panels.
- Universal Compatibility: Works with various equipment types including heat pumps and dual fuel systems with up to 3 stages of heat and 2 stages of cool.
- Flexible Damper Control: Integrated terminals support both 2-wire (spring return) and 3-wire (power open/power closed) damper configurations.
- Professional Grade Housing: The anodized aluminum enclosure provides superior protection and matches the aesthetic of the iO-ZP6 master panel.
- Simplified Wiring: Features clearly labeled terminals and LED status LEDs for each zone to verify thermostat calls and damper positions instantly.
Common Questions
How many iO-ZP6-EP panels can be added to one master controller?
You can daisy-chain up to two ZP6-EP expansion panels to a single ZP6 master board, bringing the total capacity of the forced air zoning system to 12 zones.
Is a separate transformer required for the expansion panel?
Yes, it is best practice to use a dedicated 24V transformer for the expansion module to ensure sufficient VA capacity for the additional dampers and thermostats being added to the system.
Does this expansion panel support the ESP (Electronic Static Pressure) features?
The ZP6-EP is a standard expansion module. For master panels utilizing ESP technology, ensure you are selecting the corresponding ZP6-ESP-EP to maintain bypass-free operation across all zones.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
