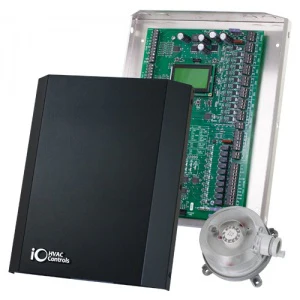

IO Hvac Controls ZP4-ESP Control Kit
The IO Hvac Controls ZP4-ESP is a professional-grade 4-zone universal control panel designed to streamline multi-zone forced air installations. By utilizing integrated ESP (Electronic Static Pressure) technology, this 10-year reliable controller eliminates the necessity for a traditional bypass damper, reducing installation time and physical footprint. The ZP4-ESP control kit is compatible with single-stage, multi-stage, heat pump, and dual fuel equipment, supporting up to 3H/2C heat pump or 2H/2C conventional configurations. A dedicated static pressure sensor continuously monitors system pressure; when levels exceed the user-defined setpoint, the panel modulates 3-wire zone dampers in non-calling areas to bleed excess pressure without significantly affecting ambient temperatures. This makes it a preferred choice for contractors seeking HVAC zone control solutions that prioritize airflow efficiency and system longevity. The board features programmable slide switches for rapid setup, alongside adjustable high/low limits and balance points for precise capacity control and equipment protection.
Key Benefits- Eliminates Bypass Damper: Award-winning ESP technology uses the ductwork as a plenum, saving space and material costs.
- Universal Compatibility: Seamlessly integrates with conventional, heat pump, and dual fuel HVAC systems.
- Automated Pressure Management: The included ZPA-SPS static pressure sensor provides real-time modulation of non-calling zones.
- Simplified Configuration: On-board slide switches allow for quick hardware setup without complex menu diving.
- Flexible Control: Features adjustable high and low limits (30F to 180F) to prevent coil freeze-up or furnace overheating.
- Does this panel require a specific type of damper? For the ESP pressure relief function to operate correctly, you must use 3-wire, power-open/power-close dampers. 2-wire dampers can be used for standard zoning but will not support the bypass-free ESP feature.
- Can it handle dual fuel applications? Yes, the ZP4-ESP is designed to manage dual fuel systems with adjustable balance points to control the changeover between heat pump and fossil fuel stages.
- How does "bleeding" air affect non-calling zones? Field tests show that relieving excess static pressure into non-calling zones has a negligible impact on temperature for the short durations required to maintain system balance.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
