IO Hvac Controls ZP3-HPS-KIT Control Kit
The iO HVAC Controls ZP3-HPS-KIT is a dual-fuel compatible 3-zone heat pump control panel engineered for residential and light commercial forced-air applications. This multi-stage HVAC zoning kit supports systems up to 3 heating and 2 cooling stages, providing veteran technicians with a streamlined, reliable solution for independent temperature control. The ZP3-HPS-KIT features auto changeover functionality and first call priority with time share, ensuring optimal airflow management even during conflicting thermostat calls. The integrated short cycle protection and LED status indicators simplify diagnostic workflows, while the electronic discharge air sensor (ZPA-DTS) prevents coil freeze-ups and high-limit trips. Built to accommodate 2-wire or 3-wire zone dampers, this kit includes a 40VA transformer, making it a comprehensive HVAC zone controller for heat pump and fossil fuel furnace integration. By utilizing an electronic duct temperature sensor, the system maintains precise discharge air monitoring, maximizing equipment longevity and efficiency in any forced air zoning system.
Key Benefits- Universal Compatibility: Works seamlessly with single-stage, multi-stage, heat pump, or dual fuel HVAC systems.
- Enhanced Equipment Protection: Features a built-in purge cycle and short cycle protection to reduce mechanical stress on the compressor.
- Contractor-Friendly Installation: Includes clear LED diagnostics for real-time monitoring of system calls, limit status, and damper operation.
- Intelligent Airflow Management: The first call priority with time share ensures all zones are satisfied within a 20-minute window, even with opposing calls.
- Flexible Wiring: Designed to support both spring-return and power-open/power-closed dampers for maximum field versatility.
Is this panel compatible with dual fuel or "hybrid" systems?
Yes, the ZP3-HPS-KIT is specifically designed for dual fuel applications, allowing for the integration of a heat pump with a gas or oil furnace backup when utilizing the proper balance point sensors.
How many dampers can I wire to a single zone?
Using the included 40VA transformer, you can typically power the panel and up to four dampers. If your application requires more than 10VA per zone or more than three dampers per zone, an additional transformer and an RY-1-HB relay are recommended.
Does this kit include everything needed for a 3-zone install?

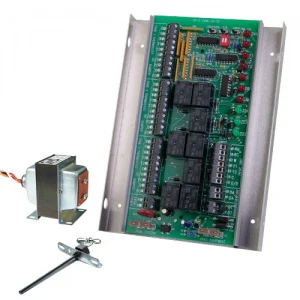

The kit includes the ZP3-HPS control panel, a discharge air temperature sensor, and a 40VA transformer. You will still need to provide the thermostats and motorized dampers specific to your ductwork requirements.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
