IO Hvac Controls ZP3-HPS-ESP-KIT Control Kit
The iO HVAC Controls ZP3-HPS-ESP-KIT is a professional-grade 3-zone heat pump zone control kit engineered for heat pump and dual fuel systems in residential and light commercial applications. This system features integrated ESP static pressure control, a technical advancement that allows contractors to eliminate the bypass damper from the installation. By utilizing an electronic static pressure sensor, the panel continuously monitors duct pressure. When zones close and static pressure rises, the controller automatically signals non-calling 3-wire zone dampers to bleed just enough air to maintain the setpoint, preventing coil freeze-up and high-limit trips while significantly reducing air noise.

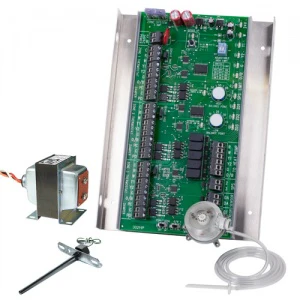

Supporting up to 3 stages of heating and 2 stages of cooling, the ZP3-HPS-ESP-KIT includes auto changeover logic and first call priority with time-sharing to ensure balanced comfort across all zones. The kit is a comprehensive field solution, packaged with the main control panel, a duct temperature sensor (ZPA-DTS), a static pressure sensor (ZPA-SPS), and a 40VA transformer. For HVAC técnicos, this kit simplifies HVAC zoning system design by removing the need for complex bypass ducting in tight mechanical spaces, ensuring compatible airflow management with MD series dampers and standard 24V thermostats.
Key Benefits- Eliminates common bypass ducting requirements, saving significant installation time and material costs.
- Internal static pressure monitoring protects the compressor and heat exchanger by ensuring proper airflow regardless of zone calls.
- Auto changeover functionality provides seamless transition between heating and cooling modes for multi-zone demand.
- Adjustable high and low balance points allow for optimized performance in dual fuel and air-source heat pump applications.
- Real-time LED status indicators allow for rapid diagnostic verification of zone calls and damper positions.
Does this kit require a specific type of damper?
The ESP logic is optimized for use with 3-wire power-open/power-close dampers, such as the iO MD series, to allow for the precise modulation required to bleed excess static pressure.
Can I use this on a dual fuel or hybrid piping system?
Yes, the panel is specifically designed for heat pump and dual fuel systems, providing dedicated terminals and logic for auxiliary heat and outdoor balance points.
How does it prevent air noise if there is no bypass?
It uses Electronic Static Pressure (ESP) logic to "bleed" excess air into non-calling zones. By slightly opening the dampers in satisfied zones, it relieves pressure before it reaches the threshold for high-velocity air noise.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
