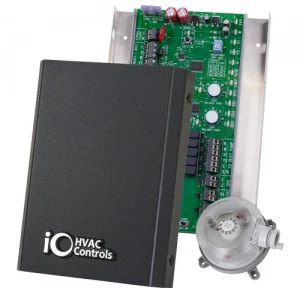

IO Hvac Controls ZP3-HPS-ESP Control Kit
The iO HVAC Controls ZP3-HPS-ESP Control Kit is a professional-grade 3-zone heat pump zone control panel designed to streamline multi-stage residential and light commercial HVAC zoning. By integrating Electronic Static Pressure (ESP) technology, this system allows contractors to eliminate the standard bypass damper entirely. The included ZPA-SPS static pressure sensor continuously monitors system pressure; as dampers cycle, the panel modulates non-calling 3-wire zone dampers to bleed off excess air. This precise airflow management prevents evaporator coil freeze-up and high-limit trips while significantly reducing air noise in smaller zones.
Engineered for heat pump and dual fuel applications, the board supports up to 3H/2C operation with auto changeover and first call priority logic. The integrated time share feature ensures all zones receive thermal conditioning during simultaneous opposite calls, preventing any single area from drifting too far from setpoint. For technical precision, the ZP3-HPS-ESP features adjustable high and low balance point control when paired with an optional outdoor sensor, making it a rugged solution for high-efficiency fossil fuel kit configurations and complex HVAC ductwork layouts where space for a bypass is restricted.
Key Benefits- Eliminates Bypass Dampers: Integrated ESP digital logic manages over-pressurization by modulating non-calling dampers, saving installation time and material costs.
- Dual Fuel Compatible: Supports seamless transition between heat pump and auxiliary heat sources with onboard balance point adjustments.
- Advanced System Protection: Onboard short cycle protection and purge cycles safeguard the compressor and heat exchanger.
- Diagnostic LED Status: High-visibility LEDs provide real-time feedback on damper position, equipment calls, and static pressure sensor activity.
- Universal Damper Support: Optimized for standard 3-wire MD series actuators but compatible with most 2-wire setups.
Does this panel require a separate static pressure controller?
No, the ZP3-HPS-ESP includes a built-in static pressure module and the required static pressure sensor, centralizing all logic on a single board.
Can I disable the air bleed in specific zones?
Yes, each zone features a dedicated ESP selector pin. You can set specific zones (like a small bathroom or basement) to 'OFF' to prevent them from acting as a dump zone for excess static pressure.
What components are included in this control kit?
The kit is a complete zoning solution including the control panel, ZPA-SPS static pressure sensor, ZPA-DTS discharge temperature sensor, and a 40VA transformer.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
