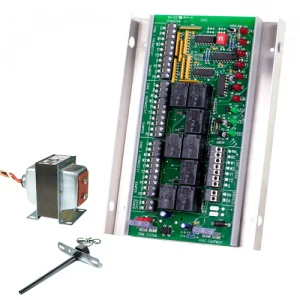

IO Hvac Controls ZP3-HCMS-KIT Control Kit
The iO HVAC Controls ZP3-HCMS-KIT is a professional-grade 3-zone control solution engineered for versatility in residential and light commercial forced-air applications. This multi-stage zone control panel supports up to 2 stages of heating and 2 stages of cooling, making it compatible with single-stage, multi-stage, heat pump, and dual fuel systems. Built for the job site, the kit includes the essential ZPA-DTS discharge air temperature sensor and a 40VA transformer, ensuring out-of-the-box functionality for HVAC zoning systems. Advanced logic features like auto changeover and first-call priority with a 20-minute time share provide balanced thermal management across all zones. The integrated short cycle protection and adjustable high/low limit sensors safeguard the compressor and heat exchanger from airflow-related stress. With its LED status indication for quick diagnostics and capability to handle 2-wire or 3-wire motorized zone dampers, this kit is the standard for contractors requiring a reliable, high-performance HVAC zone controller without unnecessary complexity.
Key Benefits
- Broad System Compatibility: Seamlessly integrates with conventional gas/electric, heat pump, and dual fuel equipment.
- System Protection: The included discharge air sensor prevents coil freeze-ups and heat exchanger overheating by monitoring plenum temperatures.
- Enhanced Comfort Logic: Features 100% first-call priority to resolve conflicting thermostat calls efficiently.
- Simplified Installation: Standard 18-gauge wiring terminals and snap-track mounting reduce time on the ladder.
- Airflow Management: Independent fan control by zone allows for precise ventilation even during off-cycles.
Common Questions
Can I use this with 3-wire power-open/power-close dampers?
Yes, the ZP3-HCMS is designed to work with both 2-wire (spring return) and 3-wire (power open/close) zone dampers, providing maximum flexibility for existing ductwork setups.
Does this panel require a bypass damper?
While the standard ZP3-HCMS-KIT manages zoning logic, the use of a bypass damper is recommended for systems where the smallest zone cannot handle the minimum CFM requirements of the HVAC unit. (For bypass-free options, check the ESP version of this panel).
Is the discharge air sensor included?
Yes, this specific kit includes the ZPA-DTS sensor and the required 40VA transformer, which are often sold separately in other configurations.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
