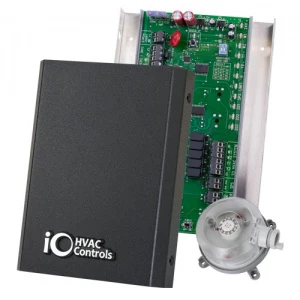

IO Hvac Controls ZP3-HCMS-ESP Control Kit
The IO HVAC Controls ZP3-HCMS-ESP is a 3-zone control panel designed for multi-stage heat/cool systems and heat pumps in residential and light commercial applications. This specialized HVAC zone control kit integrates an Electronic Static Pressure (ESP) module, effectively eliminating the requirement for a bypass damper. By utilizing 3-wire power-open/power-close dampers, the system continuously monitors static pressure. When pressure increases due to closing zones, the panel modulates non-calling dampers to bleed off excess air, preventing high-velocity noise and evaporator coil freeze-up. This static pressure control solution ensures optimal airflow across the heat exchanger while simplifying the installation footprint. The ZP3-HCMS-ESP supports up to 3H/2C for heat pumps and 2H/2C for conventional systems, featuring built-in LEDs for simplified diagnostic troubleshooting and damper status monitoring. It is the professional's choice for retrofitting zoning systems where duct space is limited.
Key Benefits
- Eliminates Bypass Dampers: The integrated ESP module manages static pressure internally, saving installation time and reducing material costs.
- System Protection: Actively prevents coil freeze-ups and high-limit trips by maintaining consistent CFM delivery through non-calling zones.
- Contractor-Friendly Wiring: Features push-button terminals and a logical layout for rapid zoning system installation and commissioning.
- Universal Compatibility: Works with most standard 24V thermostats and 3-wire motorized dampers for versatile field application.
- Improved Acoustic Performance: Modulated air bleeding eliminates the "whistling" associated with high-static pressure in small duct runs.
Common Questions
How does the ESP module replace a traditional bypass damper?
The ZP3-HCMS-ESP monitors the static pressure increase as zone dampers close. Instead of dumping air into a bypass duct, it signals closed dampers to "crack" open just enough to relieve pressure while maintaining comfort in the non-calling rooms.
What type of dampers are compatible with this control kit?
This panel is specifically engineered for use with 3-wire MD series dampers. This allows the ESP module to have precise modulating control over the damper position for accurate pressure management.
Can this panel be used with heat pump systems?
Yes, it is fully compatible with multi-stage heat pumps and dual-fuel applications, supporting up to three stages of heating and two stages of cooling.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
