IO Hvac Controls ZP3-HCMS Control Panel

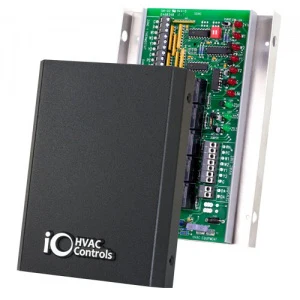

The iO HVAC Controls ZP3-HCMS Control Panel is a versatile 3-zone residential and light commercial zoning system engineered for high-performance forced air applications. Designed to handle single-stage (1H/1C), multi-stage (2H/2C), heat pump, and dual fuel systems, this panel provides an efficient solution for managing independent temperature control across three distinct areas. It features a reliable auto changeover logic with first call priority and a 20-minute time share function to ensure balanced airflow and thermal comfort even during conflicting thermostat calls. By integrating an electronic discharge air sensor (ZPA-DTS), the system provides critical short cycle protection and high/low limit monitoring to safeguard the heat exchanger and evaporator coil.
For the contractor, the ZP3-HCMS offers a simplified installation process through its snap-track mounting and clear LED status indication for system diagnostics. The panel is compatible with both 2-wire and 3-wire motorized zone dampers, allowing for flexible integration with existing ductwork components. With independent fan control by zone and a dedicated purge cycle, technicians can optimize ventilation and energy efficiency without the need for complex programming. This HVAC zone control board is a robust choice for technicians looking to resolve temperature stratification in multi-level homes or light commercial spaces using a single HVAC unit.
Key Benefits- Universal Compatibility: Seamlessly operates with heat pump, dual fuel, and conventional gas/electric systems up to 2 stages.
- Advanced Equipment Protection: Prevents system damage via a discharge temperature sensor that monitors for high and low limit thresholds.
- Enhanced Contractor Diagnostics: Features on-board LED indicators to provide real-time status of dampers, fan, and equipment calls.
- Flexible Damper Support: Works with power-open/power-close (3-wire) or spring-return (2-wire) actuators for versatile retrofit or new construction.
- Intelligent Airflow Management: Utilizes first call priority with cooling bias in the event of a tie to maximize occupant comfort.
Does this panel require a dedicated transformer?
Yes, the ZP3-HCMS requires a separate 24VAC transformer (typically 40VA) to power the panel and dampers. Never use the equipment transformer to power the zoning system.
Can I use this for a 2-zone system?
Yes, while it supports up to 3 zones, it can easily be configured for 2-zone applications by only utilizing the first two sets of terminals.
What happens if two zones call for different modes (Heating vs. Cooling)?
The panel uses first call priority logic. The first zone to call determines the mode. If the opposite mode is called by another zone and the first remains unsatisfied after 20 minutes, the time share function will initiate a changeover.
