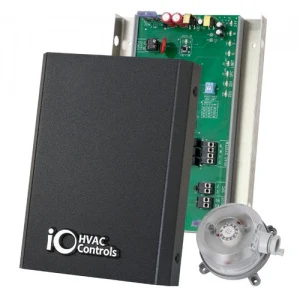

IO Hvac Controls ZP2-HC-ESP Control Kit
The IO Hvac Controls ZP2-HC-ESP Control Kit is a professional-grade solution for managing 2-zone single stage heating and cooling systems in residential and light commercial environments. By integrating the ZP2-HC logic with the ESP-400 module, this kit eliminates the need for a traditional bypass damper. Using a static pressure sensor, the system continuously monitors duct pressure. When zones close, the Electronic Static Pressure (ESP) technology modulates non-calling dampers to bleed off excess air, maintaining 0.35" W.C. (factory set) while preventing evaporator coil freeze-up and blower motor strain. This HVAC zone control system utilizes "First Call Priority" with a 20-minute time share to ensure balanced thermal comfort without the bulk of bypass ductwork.
Key Benefits- Eliminates bypass dampers and additional ducting, saving significant installation time and reducing footprint in tight mechanical closets.
- Features integrated ESP static pressure control that automatically modulates dampers to maintain optimal airflow and system efficiency.
- Includes auto-changeover logic with First Call Priority, ensuring responsive shifting between heating and cooling cycles.
- Protects equipment with a discharge air temperature sensor and built-in short cycle protection for the compressor.
- Compatible with standard 3-wire zone dampers and 24VAC thermostats, providing a versatile retrofit or new construction interface.
Can I use this with 2-wire dampers?
While the base ZP2-HC supports 2-wire dampers, the integrated ESP functionality requires 3-wire MD Series dampers to allow for the precise modulation used to bleed static pressure.
Does this kit include the pressure sensor?
Yes, the kit is a complete static pressure control module solution and includes the ZP2-HC panel, ESP-400 module, ZPA-SPS static pressure sensor, and a 24V 40VA transformer.
How does it prevent air noise without a bypass?
The Electronic Static Pressure logic detects rising pressure as zones close and signals closed dampers to "crack open" just enough to relieve pressure, utilizing the non-calling zones as a relief area without significantly affecting their temperature.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $300.81
-65%$300.81
$105.28IO Hvac Controls ZP2-HC-ESP Control Kit
The IO Hvac Controls ZP2-HC-ESP Control Kit is a professional-grade solution for managing 2-zone single stage heating and cooling systems in residential and light commercial environments. By integrating the ZP2-HC logic with the ESP-400 module, this kit eliminates the need for a traditional bypass damper. Using a static pressure sensor, the system continuously monitors duct pressure. When zones close, the Electronic Static Pressure (ESP) technology modulates non-calling dampers to bleed off excess air, maintaining 0.35" W.C. (factory set) while preventing evaporator coil freeze-up and blower motor strain. This HVAC zone control system utilizes "First Call Priority" with a 20-minute time share to ensure balanced thermal comfort without the bulk of bypass ductwork.
Key Benefits- Eliminates bypass dampers and additional ducting, saving significant installation time and reducing footprint in tight mechanical closets.
- Features integrated ESP static pressure control that automatically modulates dampers to maintain optimal airflow and system efficiency.
- Includes auto-changeover logic with First Call Priority, ensuring responsive shifting between heating and cooling cycles.
- Protects equipment with a discharge air temperature sensor and built-in short cycle protection for the compressor.
- Compatible with standard 3-wire zone dampers and 24VAC thermostats, providing a versatile retrofit or new construction interface.
Can I use this with 2-wire dampers?
While the base ZP2-HC supports 2-wire dampers, the integrated ESP functionality requires 3-wire MD Series dampers to allow for the precise modulation used to bleed static pressure.
Does this kit include the pressure sensor?
Yes, the kit is a complete static pressure control module solution and includes the ZP2-HC panel, ESP-400 module, ZPA-SPS static pressure sensor, and a 24V 40VA transformer.
How does it prevent air noise without a bypass?
The Electronic Static Pressure logic detects rising pressure as zones close and signals closed dampers to "crack open" just enough to relieve pressure, utilizing the non-calling zones as a relief area without significantly affecting their temperature.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
