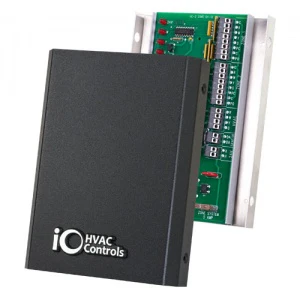

IO Hvac Controls ZP2-HC Control Panel
The iO HVAC Controls ZP2-HC is a robust 2-zone single-stage zone control panel designed for high-reliability residential and light commercial forced air zoning systems. As a primary 1H/1C zone controller, this panel features auto changeover logic with first call priority, ensuring that the first zone to signal for heating or cooling dictates the system mode. For shared calls, the integrated time share function prevents any single zone from being neglected during extreme weather. This contractor-friendly zoning solution includes short cycle protection and an electronic discharge air sensor (ZPA-DTS) interface to monitor plenum temperatures, protecting the heat exchanger and evaporator coil from overheating or freezing. The ZP2-HC is compatible with both 2-wire and 3-wire motorized zone dampers, providing technicians with maximum flexibility during field installation. With dedicated LED status indication for power, calls, and damper positions, diagnostic workflows are streamlined for rapid troubleshooting.
Key Benefits
- Universal Damper Compatibility: Seamlessly integrates with power-close/spring-open (2-wire) or power-open/power-close (3-wire) HVAC zone dampers.
- System Protection: Includes a 3-minute short cycle delay and high/low limit monitoring via the discharge air temperature sensor.
- Operational Efficiency: Features independent fan control by zone, allowing for customized airflow and ventilation without engaging the compressor or furnace.
- Automatic Mode Switching: The automatic changeover logic eliminates manual seasonal adjustments, providing hands-off comfort management.
- Contractor-Focused Design: Fits standard 18-gauge thermostat wiring and uses a snap-track mounting system for fast, secure installation in tight mechanical spaces.
Common Questions
Does this panel require a dedicated transformer?
Yes, the ZP2-HC requires a separate 24VAC transformer. A 40VA transformer typically supports the panel and up to four dampers, while a 75VA unit is recommended for six-damper configurations.
Can I use this for a heat pump system?
The ZP2-HC is specifically engineered for single-stage heating and cooling (1H/1C) applications. For heat pump or multi-stage equipment, the ZP3 series is the correct alternative.
What happens if there are simultaneous heating and cooling calls?
The system uses first call priority. If a cooling call arrives while a heating call is active, the panel will satisfy the heating demand first, then switch to cooling after the 20-minute time share interval or once the initial call is met.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
