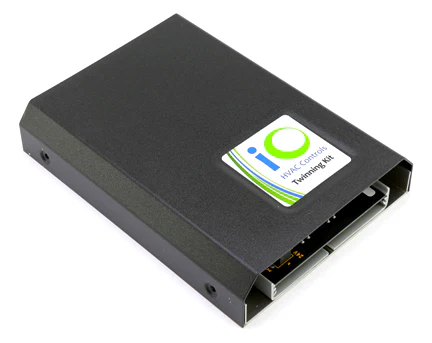

IO Hvac Controls TWIN Twinning Kit
The iO HVAC Controls TWIN Universal Twinning Kit is a field-proven solution for contractors needing to synchronize multiple HVAC units under a single control point. Commonly cross-referenced as the iO-TWIN or TK-400, this panel enables a single thermostat to operate two separate systems, ensuring simultaneous blower and stage activation. This kit is compatible with single-stage, multi-stage, and heat pump equipment, supporting up to 3 heating and 2 cooling stages. For larger mechanical footprints, the system is expandable by daisy-chaining panels to manage a total of four units. Designed for efficiency, it utilizes standard 18-gauge thermostat wire and allows for component placement up to 300 feet from the control panel. The HVAC twinning kit is housed on a durable aluminum back plate and requires a dedicated 24VAC power source to isolate the control circuit from the equipment transformers.
Key Benefits for Technicians- Universal Compatibility: Works with heat pump systems, multi-stage gas furnaces, and conventional air conditioning units.
- Expanded Capacity: Link two panels together to achieve 4-unit HVAC paralleling from one thermostat.
- System Isolation: Operates on its own 24VAC input, preventing transformer overloads and "common" wire conflicts between mismatched equipment.
- Flexible Installation: Long-distance wiring support up to 300 feet allows for centralized control in sprawling commercial or residential layouts.
- Simplified Wiring: Features clearly labeled terminal blocks for HVAC unit twinning, reducing diagnostic time and installation errors.
Can I use this kit to twin two different brands of furnaces?
It is best practice to twin identical units to ensure airflow and blower speeds are synchronized. If the units are not identical, back draft dampers should be installed in the ductwork to prevent air from bypassing through the idle unit.
Does this panel support variable speed motors?
While the iO-TWIN replicates 24V calls to both boards, most manufacturers of variable speed equipment require specific communication protocols. Verify with the equipment manufacturer if their board supports external 24V twinning signals before integrating.
Is a transformer included?
The TWIN model is the panel-only version. A separate 24VAC 40VA transformer must be wired to the H and X terminals to provide power to the logic board.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
