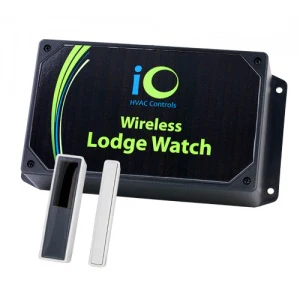

IO Hvac Controls LW-4 Lodge Watch
The iO HVAC Controls LW-4 Lodge Watch is a professional-grade wireless energy management system engineered for vacation rentals and managed properties. This system prevents high utility bills and equipment strain by monitoring the status of up to four access points. When an entry door or window is left open for more than two minutes, the LW-4 wireless receiver opens its normally closed (N.C.) contacts, triggering an HVAC lockout that disables the cooling or heating equipment. The system automatically restores operation once all monitored points have been closed for a consistent two-minute interval.
Built for the rigors of field service, the LW-4 Lodge Watch utilizes 902MHz wireless frequency for reliable communication with a range of up to 100 feet. The included LW-TR door sensors are dual-powered, utilizing solar energy harvesting with a CR1216 battery backup for low-light environments. This setup eliminates frequent battery changes and reduces maintenance callbacks. By preventing "open-envelope" operation, this condensate overflow prevention solution also mitigates risks associated with evaporator icing and pan overflows caused by high humidity infiltration.
Key Benefits:
- Prevents HVAC equipment short cycling and excessive component wear during guest occupancy.
- Supports up to 30 wireless door and window sensors for large-scale property coverage.
- Solar-powered transmitters reduce long-term maintenance costs and technician site visits.
- Compatible with 24VAC control circuits, making it a universal fit for most residential and light commercial air handlers.
- Protects against evaporator coil icing and secondary drain pan issues caused by uncontrolled infiltration.
Common Questions:
How do I add more sensors to the LW-4 system?
The receiver can be put into "Learn Mode" by pressing the dedicated button on the circuit board. Once the LED flashes, trigger the link button on the new LW-TR sensor to pair. The system supports a total of 30 transmitters.
Can the receiver module be mounted outside?
The standard LW-4 receiver is rated for indoor installation only. For rooftop units or outdoor placements, you must utilize a NEMA-rated water-tight enclosure (LW4-WT) to protect the wireless relay module from the elements.
What happens if the sensor battery dies?
The sensors primarily run on harvested ambient light. If the room is consistently dark, the internal CR1216 battery provides backup. Regular testing during seasonal maintenance is recommended to ensure the link signal remains strong.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
