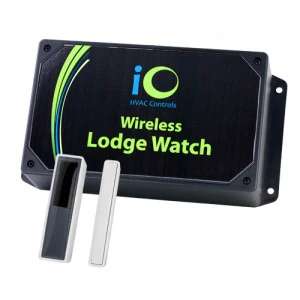

IO Hvac Controls LW-3 Lodge Watch
The iO HVAC Controls LW-3 Lodge Watch is a professional-grade wireless energy management system engineered to prevent significant energy loss in rental properties and commercial spaces. This HVAC lockout control kit includes a receiver and three indoor transmitters designed to monitor doors and windows. When a sensor detects an open circuit for more than two minutes, the LW-3 control module breaks the 24VAC thermostat circuit, effectively shutting down the compressor or furnace. This delay prevents HVAC short cycling and mitigates common issues such as evaporator coil icing and condensate pan overflows caused by high latent heat loads from infiltration. Operating on a 902MHz frequency with an 80-foot range, the system ensures reliable communication without interference. This is an essential tool for contractors looking to reduce equipment wear and operational costs in transient-occupancy environments.
Key Benefits for Contractors and Property Managers- Reduces Equipment Wear: Prevents rapid cycling and unit icing by enforcing a two-minute operational delay upon door closure.
- Versatile Power Options: Transmitters are powered via ambient light solar cells or backup CR1216 batteries, reducing maintenance requirements.
- Standard 24VAC Integration: Seamlessly interfaces with existing 24V control circuits, making it compatible with most residential and commercial split systems.
- Scalable Monitoring: While this kit handles three entry points, it can be expanded to monitor up to four indoor doors or windows per receiver.
- Wide Operating Range: Rated for temperatures ranging from -30° F to 140° F, ensuring performance in varying climate conditions.
How does the LW-3 handle temporary door openings?
The system features a built-in two-minute delay-on-make and delay-on-break timer. This ensures that the HVAC system does not shut down for brief entries or exits, protecting the contactor and compressor from unnecessary cycles.
Can the receiver be mounted outdoors?
The standard LW-3 receiver and sensors are rated for indoor use only. For applications requiring an outdoor receiver, technicians should specify the WT series (water-tight) enclosures to protect the PCB from moisture and UV degradation.
Is this compatible with heat pumps?
Yes, as a dry contact interrupt on the 24V control side, it can be integrated into the 'Y' or 'R' wire of heat pump systems to prevent operation during open-aperture events.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
