IO Hvac Controls LW-2 Lodge Watch

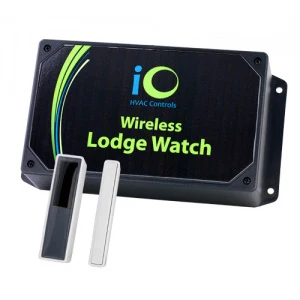

The iO HVAC Controls LW-2 Lodge Watch is a professional-grade wireless energy management system engineered to prevent HVAC runtime inefficiencies in rental properties and commercial spaces. Operating on a 902MHz frequency to ensure reliable signal penetration through standard building materials, the LW-2 monitors two separate points of entry using wireless door and window sensors. When a monitored opening remains ajar for more than two minutes, the enclosed receiver module interrupts the 24VAC control circuit, effectively locking out the compressor or air handler. This proactive HVAC lockout control mitigates common field issues such as evaporator coil icing, condensate pan overflows, and excessive compressor cycling. The LW-2 Lodge Watch features transmitters powered by integrated solar cells or CR1216 backup batteries, maintaining an 80-foot transmission range. This system is essential for contractors looking to reduce operational energy costs and equipment mechanical wear caused by open-aperture heat gain or loss.
Key Benefits for Technicians and Property Managers- Short Cycle Protection: Enforces a two-minute delay before restoring equipment power, protecting contactors and compressors from rapid cycling.
- Dual-Point Monitoring: Includes two wireless transmitters and a pre-wired circuit board for streamlined multi-opening coverage.
- Versatile Power Options: Transmitters utilize ambient light via solar cells with supplemental battery support for low-light environments.
- Wide Operating Range: Rated for temperatures between -30° F and 140° F, making it suitable for varying mechanical room conditions.
- Scalable Architecture: While configured for two zones, the LW-2 can be expanded to support up to four transmitters for larger floor plans.
How does the LW-2 interface with the thermostat?
The receiver module is wired in series with the 24VAC common or cooling/heating signal wires. When a sensor is triggered beyond the delay threshold, the internal relay opens, breaking the circuit to the HVAC unit.
Can the receiver be mounted on a rooftop unit?
The standard LW-2 receiver is NEMA-rated for indoor use only. For outdoor applications or rooftop mounting, a water-tight enclosure (LW2-WT) is required to protect the circuit board from moisture and UV degradation.
Will the 902MHz signal interfere with Wi-Fi networks?
No, the 902MHz frequency operates on a different band than standard 2.4GHz or 5GHz Wi-Fi, ensuring reliable wireless HVAC monitoring without signal cross-talk or interference.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $601.70
-65%$601.70
$210.59IO Hvac Controls LW-2 Lodge Watch
The iO HVAC Controls LW-2 Lodge Watch is a professional-grade wireless energy management system engineered to prevent HVAC runtime inefficiencies in rental properties and commercial spaces. Operating on a 902MHz frequency to ensure reliable signal penetration through standard building materials, the LW-2 monitors two separate points of entry using wireless door and window sensors. When a monitored opening remains ajar for more than two minutes, the enclosed receiver module interrupts the 24VAC control circuit, effectively locking out the compressor or air handler. This proactive HVAC lockout control mitigates common field issues such as evaporator coil icing, condensate pan overflows, and excessive compressor cycling. The LW-2 Lodge Watch features transmitters powered by integrated solar cells or CR1216 backup batteries, maintaining an 80-foot transmission range. This system is essential for contractors looking to reduce operational energy costs and equipment mechanical wear caused by open-aperture heat gain or loss.
Key Benefits for Technicians and Property Managers- Short Cycle Protection: Enforces a two-minute delay before restoring equipment power, protecting contactors and compressors from rapid cycling.
- Dual-Point Monitoring: Includes two wireless transmitters and a pre-wired circuit board for streamlined multi-opening coverage.
- Versatile Power Options: Transmitters utilize ambient light via solar cells with supplemental battery support for low-light environments.
- Wide Operating Range: Rated for temperatures between -30° F and 140° F, making it suitable for varying mechanical room conditions.
- Scalable Architecture: While configured for two zones, the LW-2 can be expanded to support up to four transmitters for larger floor plans.
How does the LW-2 interface with the thermostat?
The receiver module is wired in series with the 24VAC common or cooling/heating signal wires. When a sensor is triggered beyond the delay threshold, the internal relay opens, breaking the circuit to the HVAC unit.
Can the receiver be mounted on a rooftop unit?
The standard LW-2 receiver is NEMA-rated for indoor use only. For outdoor applications or rooftop mounting, a water-tight enclosure (LW2-WT) is required to protect the circuit board from moisture and UV degradation.
Will the 902MHz signal interfere with Wi-Fi networks?
No, the 902MHz frequency operates on a different band than standard 2.4GHz or 5GHz Wi-Fi, ensuring reliable wireless HVAC monitoring without signal cross-talk or interference.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
