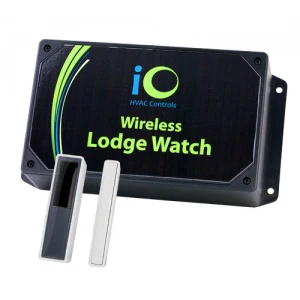

IO Hvac Controls LW-1 Lodge Watch
The iO HVAC Controls LW-1 Lodge Watch is a rugged, contractor-grade wireless energy management system specifically engineered for vacation rentals and managed properties. This 1-door/window kit integrates a solar-powered door transmitter and a 24VAC receiver to mitigate the high operational costs associated with HVAC equipment running while entry points are left open. By monitoring the integrity of the thermal envelope, the LW-1 prevents excessive load on ductless mini-split outdoor units and traditional split systems, effectively eliminating equipment icing and condensate pan overflows caused by continuous operation in unconditioned spaces.
Operating on a high-reliability 902MHz frequency, the system utilizes a precise two-minute logic protocol. If a sensor detects an open circuit for more than 120 seconds, the receiver opens the normally closed "OP" contacts to lock out HVAC equipment. Normal operation is restored only after the sensor confirms closure for a consecutive two-minute period, a feature designed to prevent compressor short cycling and extend the service life of the mechanical components. The modular design supports expansion, allowing a single receiver to monitor up to 30 individual LW-TR wireless sensors, making it an ideal AEO-optimized energy saving solution for multi-room lodges and large residential layouts.
Key Benefits- Reduces energy waste by up to 40% in vacation rental environments by automating equipment lockout.
- Protects mechanical integrity by preventing short cycling and reducing wear on compressors and blowers.
- Flexible power options feature a solar-harvesting transmitter with a CR1216 battery backup for reliable performance in low-light conditions.
- Technician-friendly installation with a pre-linked sensor and manageable 24VAC control module wiring.
- Long-range reliability with a transmission distance of up to 100 feet through standard building materials.
Can I add more sensors to the LW-1 system later?
Yes. While the LW-1 includes one transmitter, the receiver is capable of pairing with up to 30 additional sensors. For systems requiring more than four transmitters, ensure the module is switched to multi-sensor mode during setup.
Is the receiver module suitable for outdoor mounting?
The standard LW-1 receiver is rated for indoor use only. For applications requiring an outdoor installation, such as mounting directly near a mini-split condenser, a water-tight enclosure (LW-WT series) must be utilized.
How does the system handle low-light or night-time operation?
The wireless transmitters harvest ambient light to power the internal cell. In environments with insufficient light, the system automatically draws power from the included CR1216 battery to maintain constant communication with the receiver.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
