IO Hvac Controls iO-WW4 Alarm System

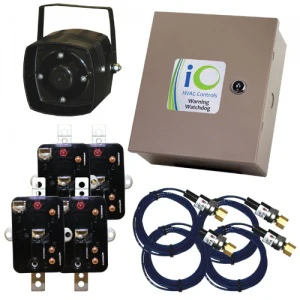

The iO-WW4 Warning Watchdog is a professional-grade condensing unit alarm system engineered to protect up to four separate HVAC units from refrigerant theft, copper stripping, and equipment tampering. As a hardwired logic-based solution, this system integrates directly into your existing security infrastructure or operates as a standalone deterrent. It triggers a modular 118dB outdoor siren and features auxiliary alarm contacts to alert central monitoring stations or phone dialers the moment a breach is detected. By monitoring the electrical loop and system pressure simultaneously, the iO-WW4 ensures that any attempt to cut wiring, pull the disconnect, or vent refrigerant results in immediate notification. This kit is a complete HVAC security system for commercial rooftops or multi-unit residential properties, providing contractors with a reliable way to safeguard high-value assets against vandalism and condenser unit theft.
Key Benefits:
- Multi-Unit Monitoring: Scalable protection for up to four units using a single iO-WWLP logic panel with LED status indicators.
- Dual-Layer Detection: Utilizes iO-WWPC pressure controls (tripping below 10 PSI) and iO-WWR240 voltage monitoring relays to detect both mechanical and electrical tampering.
- High-Output Deterrent: Includes a weatherproof 12VDC siren capable of 118dB to ward off intruders on-site.
- Contractor-Friendly Install: Designed for rapid deployment using standard 18-2 thermostat wire for all component loops.
- System Resilience: Features a siren cut-off timer and silence switch to manage alerts and prevent neighborhood noise compliance issues.
Common Questions:
Can this be used with 460V 3-phase units?
The standard iO-WW4 kit includes (4) WW-R-240 relays for 208/240V systems. For 460V/480V applications, the 240V relays should be swapped for iO-WWR480 voltage monitoring relays to ensure proper line-side sensing.
Where should the pressure controls be mounted?
The encapsulated pressure controls are designed to be mounted directly onto the liquid line Schrader valve service port. It is best practice to secure all control wiring to the line set using tie straps to prevent vibration damage and ensure a closed-loop circuit.
Does the system reset automatically after a power outage?
Yes. The logic panel is designed to automatically re-arm once 12VDC power is restored, maintaining the security perimeter without requiring a manual service call to reset the interface.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
