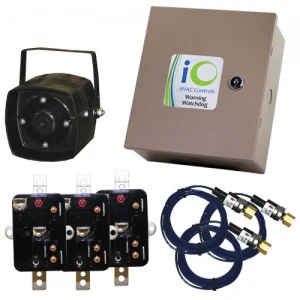

IO Hvac Controls iO-WW3 Alarm System
The iO-WW3 Warning Watchdog is a professional-grade condensing unit alarm system engineered to protect up to three separate outdoor units from theft, vandalism, and critical failure. This hardwired solution utilizes an indoor logic panel to monitor real-time system integrity through refrigerant loss detection and voltage oversight. If a copper thief cuts the lines, pulls the disconnect, or interrupts the wiring, the system immediately triggers a high-output 118 dB outdoor siren. The internal logic features a siren cut-off timer and silence switch, providing technicians with precise control during maintenance. By integrating iO-WWR240 voltage monitoring relays and iO-WWPC pressure control switches, the iO-WW3 ensures that packaged or split systems stay operational and secure. The pressure switches are rated for a 600 PSI working pressure and 3500 PSI burst strength, activating the alarm if pressure falls below 10 PSI. This system can also be integrated with a central alarm or phone dialer for remote monitoring.
Key Benefits- Multi-Unit Monitoring: Supports up to four systems from a single panel, with this kit specifically configured for three units.
- High-Output Deterrent: Includes a 12VDC, 118dB anti-theft HVAC alarm siren for immediate local notification.
- Tamper Resistance: Detects pulled disconnects and cut wires, addressing the most common methods of copper theft.
- Fail-Safe Logic: LED status indicators on the logic panel provide rapid diagnostics for service technicians.
- Universal Application: Compatible with both residential and commercial 208/240V single-phase or 3-phase machinery.
How does the system detect refrigerant theft?
The iO-WW3 utilizes encapsulated pressure controls that mount directly to the liquid line Schrader valve. If the line is cut and pressure drops below 10 PSI, the circuit opens and triggers the alarm.
Can I connect this to a building automation system?
Yes, the logic panel provides dry contacts that can interface with a central security system, phone dialer, or BAS to notify property managers of a breach.
What wiring is required for installation?
Standard 18-2 gauge thermostat wire is used to connect the outdoor relays and sensors to the indoor logic panel, making it a straightforward addition for any HVAC technician.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
