IO Hvac Controls iO-WW2 Alarm System
The iO HVAC Controls iO-WW2 Warning Watchdog is a professional-grade condensing unit alarm system engineered to protect outdoor HVAC equipment from copper theft, vandalism, and refrigerant loss. This hardwired solution monitors up to two condensing units simultaneously using a single logic panel, making it an essential integration for high-risk commercial or residential installations. By supervising refrigerant pressure and line voltage, the system provides immediate notification of tampering before significant equipment damage occurs.

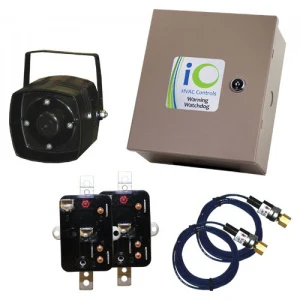

Operating on 240/208V single-phase or 3-phase power, the iO-WW2 utilizes encapsulated pressure controls that trigger the alarm if system pressure drops below 10 PSI. The logic panel is equipped with a 118 dB outdoor siren, a siren cut-off timer, and a silence switch for controlled site management. Each kit includes two iO-WWR240 voltage monitoring relays and two iO-WWPC pressure controls, allowing for dual-unit monitoring. The system can be further expanded to support a total of four units and is compatible with central alarm panels, phone dialers, or building automation systems for remote notifications.
- Comprehensive Theft Deterrent: Triggers a high-decibel siren if wiring is cut, the disconnect is pulled, or refrigerant lines are tampered with.
- Multi-Unit Protection: Capable of supervising up to 2 units out of the box, with expansion potential for up to 4 units per logic panel.
- Universal System Compatibility: Designed for seamless integration with both packaged rooftops and split systems.
- Reliable Monitoring: Uses hardwired logic to differentiate between power outages and intentional tampering, minimizing false alarms.
How does the system detect refrigerant leaks?
The iO-WW2 uses the included iO-WWPC encapsulated pressure switches installed on the liquid line service port. If the pressure falls below 10 PSI due to a line cut or leak, the circuit opens and activates the alarm.
Can I link this to a building’s existing security system?
Yes. The logic panel features dry contacts that allow for easy integration with central alarm systems, 24/7 monitoring services, or automated phone dialers.
What wiring is required for installation?
Standard 18-gauge 2-conductor thermostat wire is recommended for connecting the outdoor components to the indoor logic panel, ensuring a straightforward HVAC alarm installation.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
