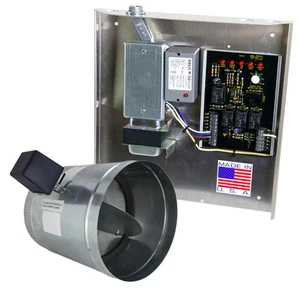

IO Hvac Controls iO-FAVR-ENH-08 System
The iO HVAC Controls iO-FAVR-ENH-08 is a professional-grade fresh air ventilation system engineered to meet ASHRAE 62.2 standards for indoor air quality. This enhanced kit features a micro-processor logic panel housed within a consolidated junction box, integrating a 20VA transformer and a dedicated relay for simultaneous exhaust fan control. The system includes a high-torque 8-inch power open, 2-wire motorized damper designed for seamless intake regulation. Utilizing single-adjustment setup logic, the controller allows technicians to set ventilation schedules based on square footage and occupancy. The iO-FAVR-ENH-08 provides essential outdoor temperature and humidity limit options, ensuring that ventilation is inhibited during extreme weather conditions to maintain sensible and latent load efficiency. Designed for hard-wired reliability, this kit includes a gang box for line voltage separation, simplifying the interface between the HVAC air handler and the fresh air intake.
Key Benefits
- ASHRAE 62.2 Compliance: Simplifies meeting ventilation codes in residential and light commercial applications.
- Integrated Exhaust Relay: Allows for balanced ventilation by energizing an exhaust fan during the intake cycle.
- Environmental Lockouts: Built-in logic permits outdoor temperature limits and humidity sensing to prevent high-enthalpy air from entering the space.
- Simplified Installation: Features a pre-wired assembly with a 20VA transformer and junction box under a single cover.
- Hardware Inclusions: Comes standard with a heavy-duty 8" ventilation damper for reliable mechanical airflow control.
Common Questions
How do I adjust the ventilation timing on the iO-FAVR-ENH-08?
The panel utilizes a single pot adjustment for CFM requirements. By calculating the necessary mechanical ventilation rate based on the ASHRAE formula, you can calibrate the runtime directly on the logic board.
Can this system be used with a heat recovery ventilator (HRV)?
This system is primarily designed for supply-side ventilation using a direct intake damper. While it can trigger an external fan via the integrated relay, it is typically used as a standalone fresh air system rather than an HRV controller.
Does the damper require a separate power source?
No, the iO-FAVR-ENH-08 kit includes a 20VA transformer within the control enclosure to power the 2-wire motorized damper and the logic board.
Please contact us for shipping charge on this item.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
