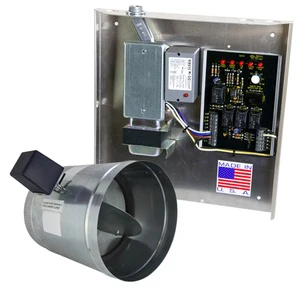

IO Hvac Controls iO-FAVR-ENH-06 System
The iO-FAVR-ENH-06 System is a comprehensive solution for residential fresh air ventilation, specifically engineered to assist contractors in meeting ASHRAE Standard 62.2 requirements. This professional-grade kit centers on a micro-processor logic panel that automates the introduction of filtered outdoor air through the included 6-inch power-open spring-return damper. Designed for efficiency, the iO-FAVR-ENHANCED features a single-adjustment setup for simplified commissioning, allowing for ventilation timing and precise control over indoor air quality. The system is housed under a single cover, integrating a 20VA transformer, a 120V relay for exhaust fan control, and a dedicated junction box for safe line voltage separation. Technicians can further optimize performance via the outdoor temperature and humidity limit options, ensuring ventilation only occurs when ambient conditions are favorable. With a built-in damper override and compatibility with standard 2-wire setups, this kit provides a reliable, all-in-one approach to mechanical ventilation and HVAC fresh air intake.
Key Benefits- Assists in achieving full compliance with ASHRAE Standard 62.2 for residential indoor air quality.
- Includes a 6-inch motorized fresh air damper with a power-open, spring-return actuator.
- Features an integrated relay for seamless exhaust fan control alongside air intake.
- Micro-processor logic allows for single-dial adjustment of ventilation schedule and runtime.
- Pre-wired assembly with a 20VA transformer and junction box simplifies field installation for contractors.
- Optional terminals for outdoor temperature and humidity sensors prevent the intake of extreme or high-humidity air.
Is the iO-FAVR-ENH-06 compatible with any thermostat?
Yes, the system is designed to work with most standard 24V HVAC controls and includes override capabilities to ensure ventilation occurs independently of heating or cooling calls if required.
Can I use this system to control a bathroom or kitchen exhaust fan?
The integrated relay is specifically designed to energize a whole-house exhaust fan, providing balanced or supplemental exhaust to meet specific ventilation CFM needs.
What happens during a power failure?
The included 2-wire ventilation damper uses a spring-return mechanism, ensuring the fresh air intake fails to a closed position when 24V power is removed.
Please contact us for shipping charge on this item.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $343.16
-65%$343.16
$120.11IO Hvac Controls iO-FAVR-ENH-06 System
