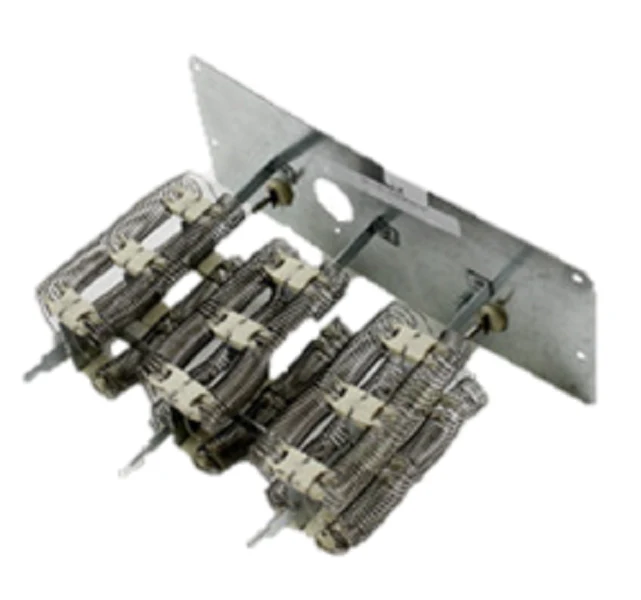

International Environmental 70300238 Heater Element
The International Environmental 70300238 Heater Element is a critical OEM replacement part designed specifically for Series M and Y fan coil units and compatible HVAC air handler units. Engineering a reliable thermal solution, this 277V 1.5KW electric heater element provides consistent 5.4 Amp resistance heating to ensure architectural comfort in demanding commercial environments. As a veteran-grade fan coil unit heater assembly, it features a robust open-wire design for maximum heat transfer and includes an integrated safety limit switch to prevent thermal overload during operation. When you are performing a mid-season HVAC electric heater replacement, using this genuine 1.5kW element ensures the system maintains its original thermal performance curves without drawing excessive amperage on your 277V single-phase circuits. The 9.5-inch assembly is a direct drop-in for IEC 70300238, eliminating the need for field modifications and reducing labor time on the job site.
Key Benefits
- Direct OEM Compatibility: Verified fit for International Environmental (IEC) Model M and Y fan coil units.
- High-Efficiency Output: Delivers a consistent 1.5KW (1500 Watts) at 277VAC to meet specific heating load requirements.
- Safety Integrated: Includes a factory-installed high-limit thermal cutout for circuit protection.
- Rugged Construction: Built with high-grade resistive wire to withstand frequent cycling in commercial HVAC applications.
- Simplified Installation: Standardized footprints allow for a "drop-in" HVAC element replacement by any qualified contractor.
Common Questions
How do I test if my 70300238 heater element is defective?
Using a multimeter set to the ohms scale, check for continuity across the terminals after disconnecting power. A reading of infinity (OL) indicates a broken internal coil, requiring immediate replacement. This element should typically show a resistance compatible with a 5.4 Amp draw.
Can I use this 277V element in a 208V or 240V system?
This part is specifically rated for 277V. While it may physically fit other units, operating it at a lower voltage will significantly reduce the KW output and may lead to improper system performance or premature failure of other HVAC components.
Is the thermal limit switch included with the assembly?
Yes, this assembly contains the electric heater element and the necessary thermal limit protection as a single kit to ensure safe operation within the air handler Cabinet.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
