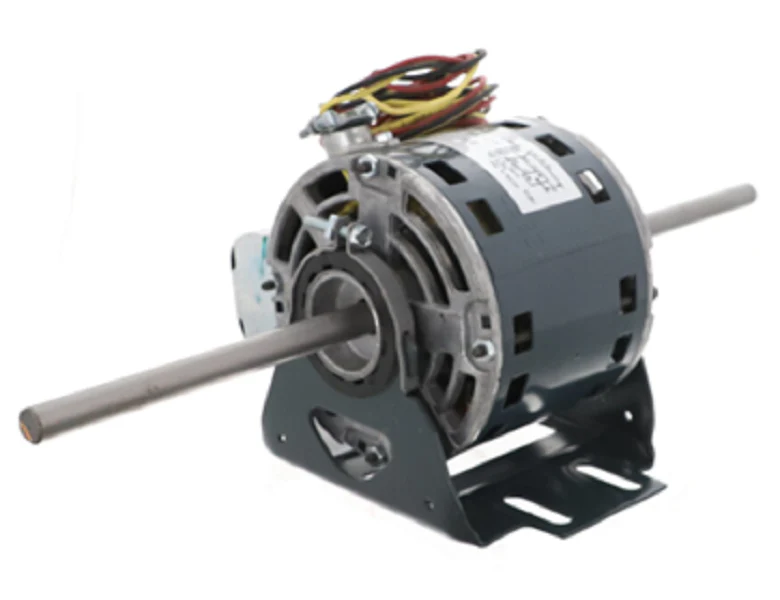

International Environmental 70021674 Motor
The International Environmental 70021674 Motor is a high-performance direct drive blower motor designed for precision airflow in fan coil units. Operating at 208-230V and delivering 1/12 HP, this single-phase motor is engineered for the demanding duty cycles of IEC Low Boy series 03, 04, and 06 units. With a rated speed of 1400 RPM, it maintains consistent static pressure across various duct configurations. The internal ball bearing system ensures low rotational friction and high thermal resilience, while the Open Air Over (OAO) enclosure facilitates optimal heat dissipation during continuous operation. As an OEM replacement motor, the 70021674 features a double shaft design and 3-speed capability, allowing for fine-tuned air balancing. This motor typically includes the necessary run capacitor for simplified field installation, providing technicians with a drop-in solution that restores factory-spec HVAC blower performance without site modifications.
Key Benefits:
- Precision Engineering: Specifically matched for IEC 70021674 applications to ensure exact fitment and amperage draw.
- Multi-Speed Versatility: The 3-speed configuration allows for customized airflow settings to meet specific environmental requirements.
- Enhanced Durability: Equipped with permanent split capacitor (PSC) technology and heavy-duty ball bearings for increased mechanical life.
- Direct Drive Efficiency: Eliminates belt maintenance and power loss, optimizing energy consumption in fan coil unit (FCU) systems.
Common Questions:
What is the rotation direction for this IEC motor?The 70021674 is typically configured for Counter Clockwise Lead End (CCWLE) rotation, though you should verify the specific wiring diagram for your chassis.
Is this motor compatible with 115V systems?No, this is a dedicated 208-230V 1PH motor. Applying lower voltage will result in insufficient torque and potential winding failure.
Does the motor include the mounting base and capacitor?Yes, this direct drive motor generally ships with the integrated mounting base and the required run capacitor for a complete assembly replacement.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
