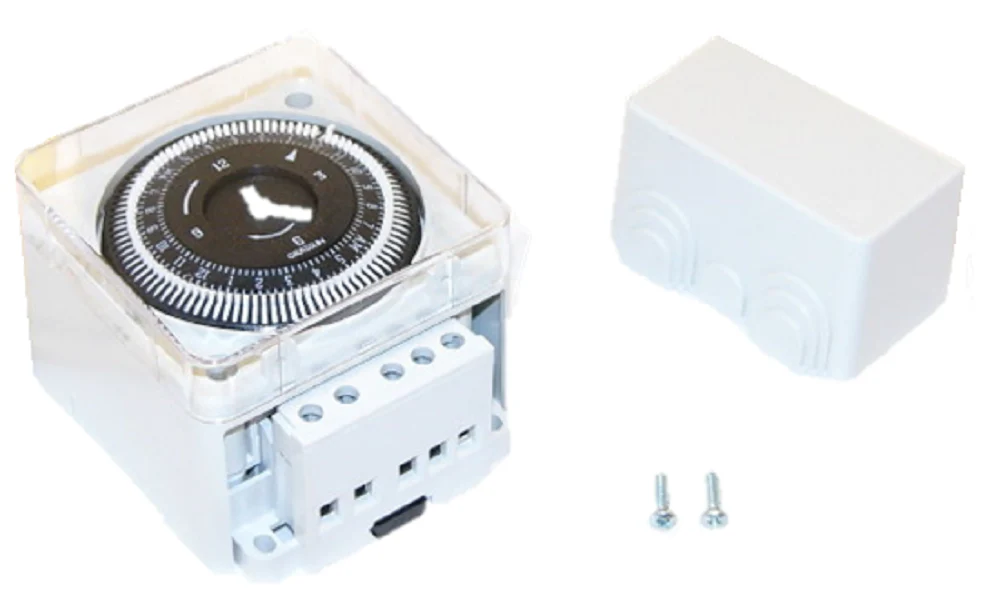

Intermatic MIL72ASTUZ-120 Timer
The Intermatic MIL72ASTUZ-120 is a heavy-duty 24-hour electromechanical timer designed for precise equipment scheduling in commercial and industrial control panels. Operating at 120V AC, this synchronous drive module features a high-capacity 21 Amp SPDT switch, making it a reliable choice for managing resistive and motor loads, including HVACR systems, pumps, and ventilation fans. The unit is engineered for versatile installation, supporting both DIN rail mounting and surface mounting within an enclosure. For rapid commissioning, the captive trippers allow for minimum 15-minute switching intervals, while the true analog clock face ensures the current time is visible at a glance. This Intermatic MIL72 series timer replaces complex digital controls with a rugged, fail-safe mechanical mechanism that withstands temperatures from -40?F to 185?F. Whether you are automating lighting circuits or cycling 1 HP motors, this module provides the 24-hour time control necessary for efficient energy management in professional environments.
Key Benefits
- Flexible Installation: Integrated support for both standard 35mm DIN rail and surface mounting provides versatility for any panel configuration.
- High Amperage Rating: The 21A SPDT switch handles demanding 120V loads, reducing the need for intermediate relays in many applications.
- User-Friendly Programming: Captive trippers prevent lost parts and allow for quick interval adjustments without specialized tools.
- Environmental Resilience: Wide operating temperature range ensures consistent performance in unconditioned mechanical rooms or outdoor NEMA 3R enclosures.
- Manual Clear Cover: Included dust cover protects the clock face and trippers from debris while maintaining visibility for inspection.
Common Questions
- Can this timer be used for both heating and cooling applications? Yes, the SPDT (Single Pole Double Throw) contact configuration allows it to be wired for both normally open and normally closed operations.
- How do I set the switching times? Push the captive trippers toward the center for "OFF" and toward the outer edge for "ON." Each tripper represents a 15-minute increment.
- Is there a battery backup on the MIL72ASTUZ-120 model? No, the "ASTUZ" model uses a synchronous motor drive which requires constant power. For battery carry-over, a "Q" series quartz model would be required.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
