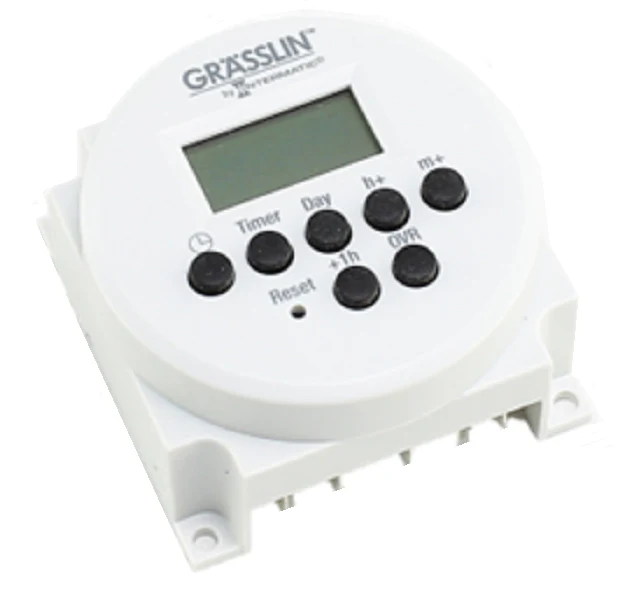

Intermatic FM1D14-AV-U Time Switch
The Intermatic FM1D14-AV-U is a heavy-duty 24-hour/7-day electronic time switch designed for versatile commercial and industrial control applications. This SPDT (Single Pole Double Throw) digital module features a wide universal voltage range of 120-277 VAC, eliminating the need for multiple SKUs and ensuring compatibility across various power systems. Engineered for high-precision switching, it supports up to 14 setpoints for flexible load scheduling. The unit includes a manual override feature, allowing technicians to toggle the circuit status without disrupting programmed schedules. With a 3-year battery backup, this DIN rail mount timer maintains clock accuracy and programmed events during power outages. Its 15 Amp resistive rating makes it an ideal solution for managing HVAC equipment, lighting systems, and specialized commercial motor control circuits where reliability and timing accuracy are critical for operational efficiency.
Key Benefits
- Universal Voltage Compatibility: Operates seamlessly on 120V, 208V, 240V, and 277V systems.
- Flexible Programming: Supports 24-hour or 7-day scheduling with up to 14 ON/OFF events.
- Robust Switching Capacity: Features a 15A resistive rating and 1/2 HP inductive capacity for diverse load requirements.
- Permanent Memory: Internal backup ensures program retention during facility power failures.
- Compact Integration: Designed for easy installation into existing control panels via DIN rail mounting.
Common Questions
How do you program the Intermatic FM1D14-AV-U for 7-day operation?
The interface allows for individual day selection or block programming, which is useful for setting consistent schedules across multiple weekdays while keeping weekend cycles separate.
Can this time switch be used for 208V 3-phase motor control?
While the timer itself operates on 208V single-phase power, its SPDT output is typically used to energize the coil of a larger magnetic contactor to handle 3-phase loads.
Does the FM1D14-AV-U require a specific enclosure for installation?
This is an electronic module designed for integration into a NEMA-rated enclosure or a control panel and is not intended for standalone outdoor use without proper protection.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $184.27
-65%$184.27
