Intermatic FF46H Timer
The Intermatic FF46H is a heavy-duty 6-hour DPST spring wound timer designed for demanding commercial and industrial environments. This mechanical countdown timer operates without the need for electricity, making it a reliable choice for energy-efficient motor control and lighting management. Built with a double-pole single-throw configuration, it is capable of switching two separate 20A resistive loads simultaneously. The unit features teeter-type terminals to ensure secure field wiring and is designed to fit into a 1-gang or 2-gang junction box, effectively replacing any standard wall switch. Its brushed metal look plate is constructed from durable plastic to meet NEC requirements while maintaining a professional aesthetic for contractors.
Key Benefits
- Dual-load switching: The DPST silver-plated contacts allow for simultaneous control of two poles, making it ideal for 240V HVAC ventilation fans or separate lighting circuits.
- High electrical ratings: Handles up to 20A resistive at 125 VAC and is rated for 1 HP motor loads at 120 VAC, ensuring robust performance with induction motors.

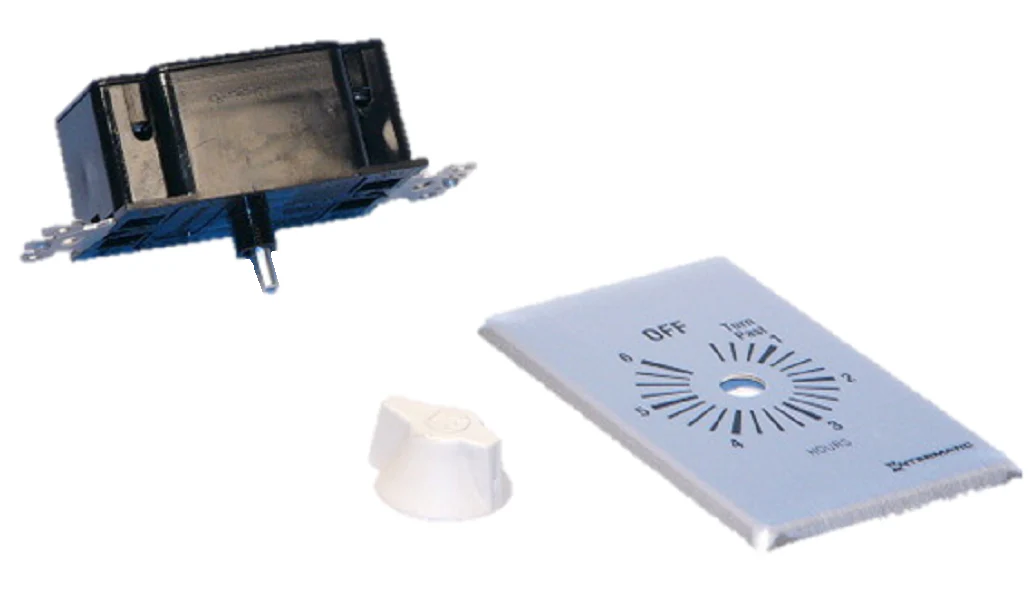

- Simplified installation: Includes a press-on knob and brushed metal style wall plate for quick mounting in standard 2-1/2 inch deep junction boxes.
- Inductive load compatibility: Engineered to work seamlessly with CFL, LED, and fluorescent lighting as well as resistive heating elements.
Common Questions
Does the Intermatic FF46H require a neutral wire?
No, since this is a mechanical spring-wound switch, it does not require a neutral connection or a constant power supply to operate the timing mechanism.
Can I use this timer for 240V applications?
Yes, the DPST configuration is specifically designed to break both legs of a 240V circuit, or it can be used to control two independent 120V circuits up to the 20A limit.
Is there a constant 'ON' or 'HOLD' feature on this model?
The FF46H is a dedicated auto-off countdown timer and does not include a manual hold feature; it will always return to the 'OFF' position once the cycle is complete.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
