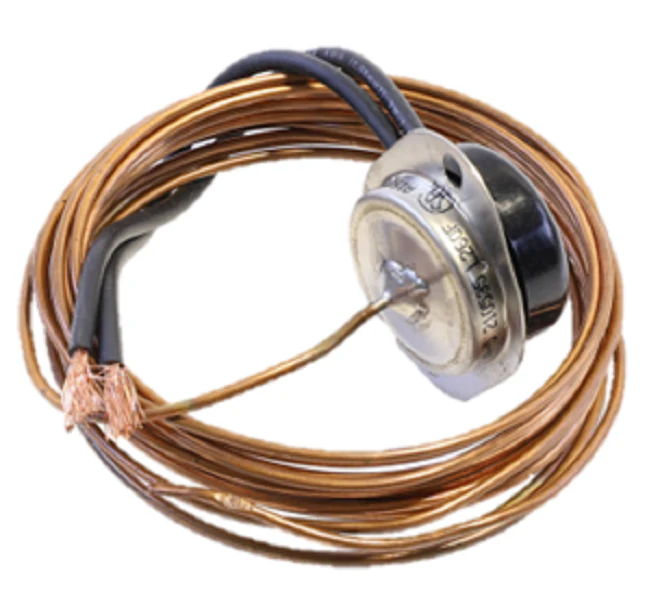

Indeeco 1006497 Limit
The Indeeco 1006497 Limit Switch is a critical safety component designed for duct heater high-limit protection and thermal regulation in industrial and commercial HVAC systems. This automatic reset thermal cut-out features a 240°F (115.5°C) fixed temperature setpoint, ensuring the system interrupts power before reaching unsafe operating temperatures. Engineered for versatility, it features a 144-inch (12-foot) capillary tube, allowing for precise weighted average temperature sensing across large duct faces or multi-stage heating banks. This sensor is essential for preventing equipment damage and ensuring compliance with NEC and UL safety standards for electric heat installations. Its rugged design ensures durability in high-cycle environments, providing technicians with a reliable solution for maintaining HVAC system safety and operational uptime.
- Extended 12-Foot Capillary: Provides comprehensive coverage across wide duct widths to detect localized hotspots.
- Automatic Reset Functionality: Restores continuity once the temperature drops below the 240°F setpoint, reducing system downtime.
- Wide Compatibility: Direct replacement for several Indeeco duct heater models and equivalent high-limit safety switches.
- Precise Thermal Response: Calibrated for high-limit safety control to prevent thermal runaway in forced air systems.
Common Questions
Can I use this limit switch for multi-stage electric heaters?
Yes, the 144-inch capillary is ideal for multi-stage units where sensing across the entire heating element array is necessary for thermal protection.
How does the automatic reset function work?
Once the Indeeco 1006497 senses a temperature drop below its differential threshold (typically 20-30°F below setpoint), the contacts close automatically to re-energize the control circuit.
Is the capillary tube flexible enough for tight duct turns?
The capillary is designed for flexibility, but avoid sharp kinks or 90-degree bends to ensure the fluid within the temperature sensing bulb remains uncompressed for accurate readings.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
