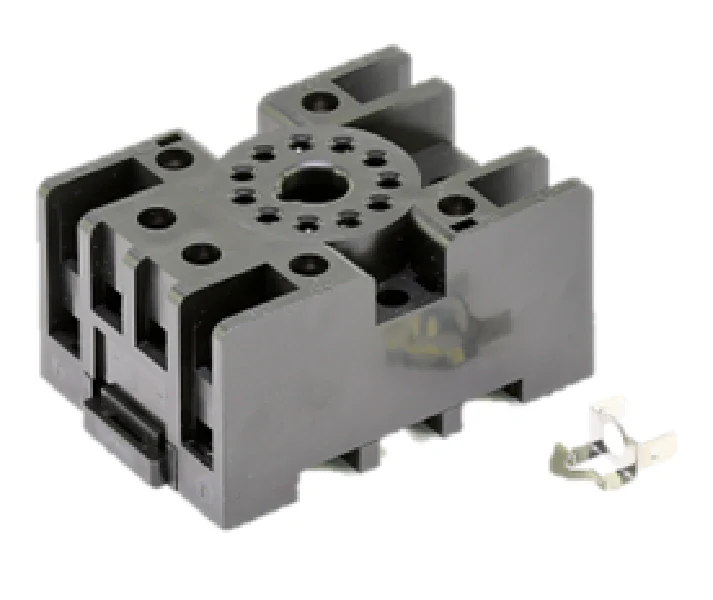

IDEC Relays SR3P-05C Relay
The IDEC SR3P-05C is a high-performance, 11-pin octal relay socket designed for demanding industrial HVACR and automation control panels. Interfacing seamlessly with RR3PA series relays and GT3 timers, this DIN rail mount socket features a robust 3-pole configuration rated for 10A at 300V AC. Built with finger-safe (IP20) terminals, it utilizes M3.5 screw clamps with captive wire pressure plates to ensure vibration-resistant terminations, supporting wire sizes up to 12 AWG. Its compact black phenolic housing is engineered for high-density layouts, offering a 250V insulation rating and snap-on mounting that integrates directly into standard 35mm DIN rail systems. For contractors managing 11-pin octal relay replacements or new control logic installations, the SR3P-05C provides the structural integrity and electrical clearance required for silver-contact power relays used in motor starting and refrigeration sequencing.
Key Benefits- Finger-Safe Design: IP20 protection ratings on all screw terminals minimize the risk of accidental contact in live enclosures.
- High-Current Capacity: Robust 10A rating supports heavy-duty 3PDT relay switching for HVAC blowers and compressors.
- Flexible Mounting: Optimized for standard 35mm DIN rail or surface mounting using the integrated mounting clip.
- Secure Terminations: Captive M3.5 screw clamps prevent hardware loss during field wiring and ensure a consistent 9 to 11.5 in-lb torque application.
- Universal Compatibility: Specifically engineered for IDEC RR3PA pin-terminal relays and compatible thermal or electronic timers.
Which hold-down springs are required for this socket?
For standard RR3PA series relays, use the SR3B-02F1 hold-down spring to ensure the relay remains seated under high-vibration conditions.
Can this socket be used with 8-pin relays?
No, the SR3P-05C is an 11-pin octal base. For 8-pin applications involving RR2P relays, the SR2P-05C or SR2P-06 base is required.
What is the maximum wire gauge for the screw terminals?
The terminals are designed to accept up to two #12 AWG wires or equivalent, providing ample capacity for typical control circuit branching.
