IDEC Relays SR2P-05 Relay

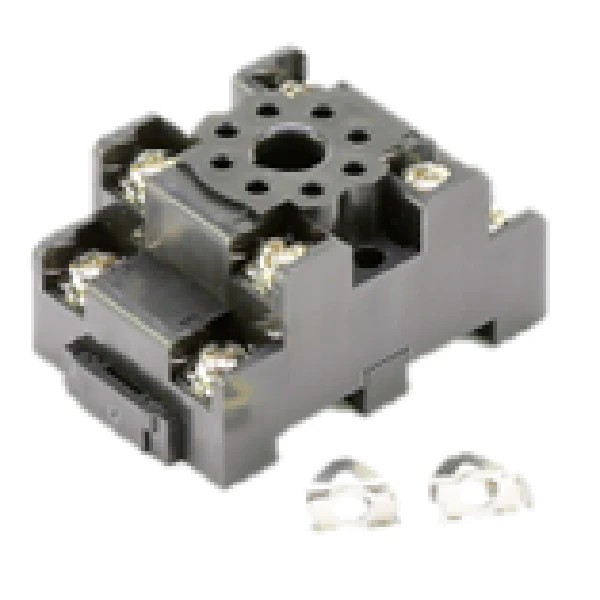

The IDEC SR2P-05 is a high-performance 8-pin octal relay socket engineered for demanding industrial control and HVACR applications. Designed for seamless integration with RR2P series relays and RTE-P1 timers, this dual-tier socket features a robust DIN rail mount design that simplifies installation and reduces cabinet assembly time. With a substantial 10A current rating and 300V voltage insulation, it provides a stable electrical interface for power-heavy switching tasks. The unit utilizes M3.5 terminal screws with captive wire clamps, accommodating up to two #12 AWG wires for reliable field wiring. Its snap-mount convenience and compact black phenolic housing ensure long-term durability in high-vibration environments, making it a staple for contractors prioritizing secure, vibration-resistant electrical relay connections.
Key Benefits- System Compatibility: Fully optimized for IDEC RR2P and RAPP series relays, ensuring a perfect mechanical and electrical fit.
- Enhanced Field Efficiency: Features a dual-tier terminal layout and captive M3.5 screw clamps for rapid, secure wiring with standard tools.
- Industrial Build Quality: High-impact construction rated for 10A at 300V, designed to withstand the thermal and physical rigors of control panels.
- Simplified Mounting: The snap-mount DIN rail design eliminates extra hardware while providing a steady, secure base for octal-base components.
What relay models are compatible with the SR2P-05 socket?
This socket is specifically designed for 8-pin circular pin pattern (octal) relays, primarily the IDEC RR2P DPDT series, but also supports RTE-P1 timers and GT3 series 8-pin timers.
Can this socket be surface mounted if a DIN rail is not available?
Yes, the SR2P-05 is a dual-purpose base that supports both 35mm standard DIN rail mounting and direct surface mounting via integrated screw holes.
What is the maximum torque and wire size for the terminal screws?
The M3.5 screws are rated for 9 to 11.5 in-lbs of torque and can securely clamp up to two 12 AWG stranded or solid wires.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
