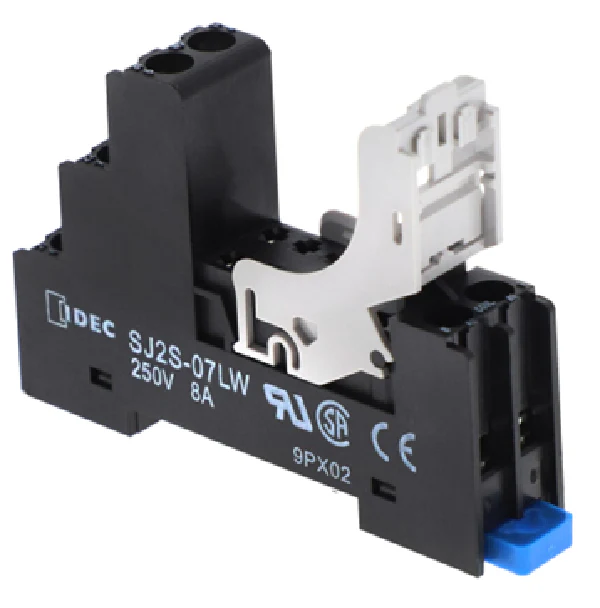

IDEC Relays SJ2S-07LW Relay
The IDEC SJ2S-07LW Relay Socket is a professional-grade, 8-pin DIN rail mount socket engineered specifically for the IDEC RJ2S slim power relay series. This double pole (DPDT) interface features a compact 15.5mm profile, making it a critical component for industrial control panel space optimization. Designed with a finger-safe screw terminal architecture, it ensures compliance with modern safety standards by preventing accidental contact with live electrical circuits. The M3 screw terminals are built for high-vibration HVACR environments, supporting a maximum current rating of 8A at 250VAC. Field technicians value the SJ2S-07LW for its robust captive wire clamps, which accommodate 2 to 14 AWG wiring, and its high-dielectric strength, ensuring reliable signal isolation between the coil and blade terminal contacts. Whether you are replacing a legacy SJ2S-07L or building a new relay logic assembly, this socket provides a secure, snap-on mounting solution for high-density applications.
Key Benefits:- Universal Compatibility: Specifically designed to house RJ2S and RJ22S series slim relays with 8-pin blade terminals.
- Enhanced Safety: The IP20 finger-safe design protects personnel from electrical shock during maintenance and testing.
- High-Density Mounting: Ultra-slim form factor allows for maximum relay density on standard 35mm DIN rail systems.
- Secure Termination: Captive M3 screw terminals provide reliable, high-torque connections for field-installed wiring.
Does this socket support standard RJ1S single-pole relays?
No, the SJ2S-07LW is specifically configured for 8-pin double pole (DPDT) RJ2S relays. For single-pole applications, use the SJ1S-07LW socket.
What is the maximum wire gauge for this terminal?
This socket is rated for wire sizes ranging from 2 to 14 AWG, providing flexibility for various HVACR control and power circuit requirements.
Can this be mounted directly to a backplate?
While optimized for DIN rail mounting, these sockets can be integrated into custom panels using standard rail segments for organized wire management.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $6.30
-65%$6.30
$2.20IDEC Relays SJ2S-07LW Relay
