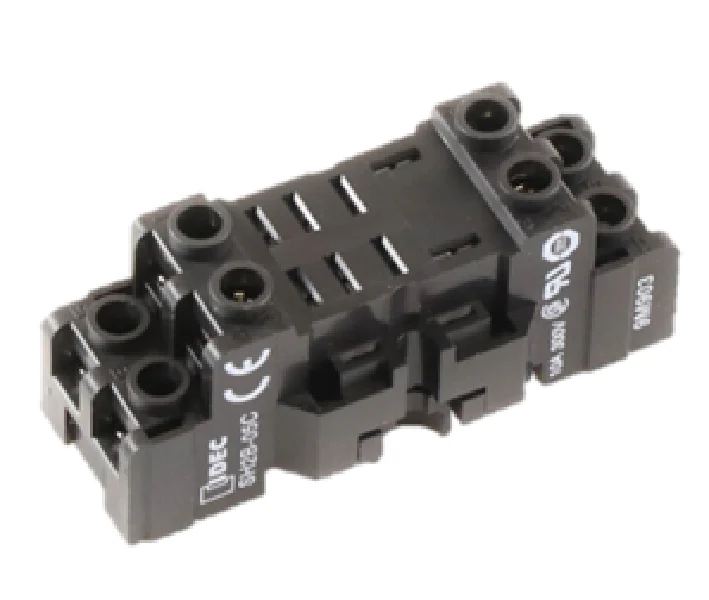

IDEC Relays SH2B-05C Relay
The IDEC SH2B-05C is a professional-grade 8-pin relay socket engineered for high-density control panels and HVACR automation systems. This double pole DIN rail mount socket features a compact midget design that maximizes rail space while providing a robust interface for IDEC RH2B series midget relays and RTE series timers. Constructed with an emphasis on safety and speed, it utilizes a finger-safe screw terminal configuration (IP20 rated) to prevent accidental contact in live power environments.
Designed to handle technical demands in the field, the SH2B-05C socket supports a 10A current rating and is rated for up to 300V AC. It features captive M3.5 wire clamp screws, allowing for simplified terminations with either two 12 AWG or two 14 AWG wires. The snap-mount design significantly reduces installation time by eliminating the need for additional mounting hardware, though it also includes pre-drilled holes for direct surface mounting. Whether you are replacing a worn base or building a new control sequence, this blade terminal relay base ensures a secure, low-resistance connection for critical DPDT relay applications.
Key Benefits for Field Technicians:- Enhanced Safety: The finger-safe terminal design protects technicians from electrical shock during troubleshooting and maintenance.
- High Load Capacity: Rated for 10 Amps, making it suitable for motor starters, solenoid valves, and HVAC blowers.
- Universal Mounting: Easily attaches to standard 35mm DIN rail or can be surface-mounted directly to the backplate.
- Secure Terminations: Captive M3.5 screw clamps ensure wires remain seated even in high-vibration industrial environments.
- Broad Compatibility: Specifically optimized for RH2B blade terminal relays, ensuring a perfect mechanical and electrical fit.
Which relays are compatible with the SH2B-05C socket?
This socket is specifically designed for the IDEC RH2B series DPDT midget power relays. It also accepts IDEC RTE series timers that utilize the same 8-pin blade configuration.
What wire size should I use with these screw terminals?
For optimal performance and safety, use up to two 12 AWG or 14 AWG solid or stranded copper wires per terminal.
Is a hold-down clip required for this base?
While not always required for static panels, using a hold-down spring (such as the SY4S-02F1) is recommended in high-vibration HVACR applications to prevent the relay from unseating.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
