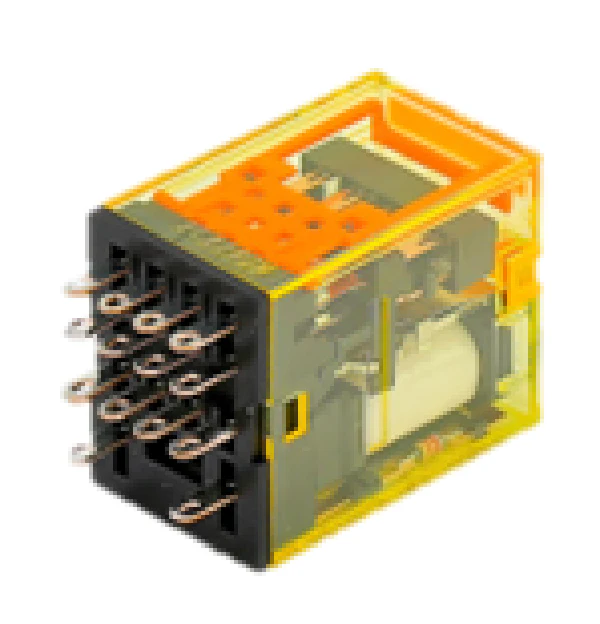

IDEC Relays RU4S-C-A24 Relay
For industrial control systems that demand compact reliability, the IDEC RU4S-C-A24 relay is a staple in the technician's kit. This 24VAC universal plug-in relay features a 4PDT (4 Form C) contact configuration, allowing you to switch up to four independent circuits simultaneously from a single 24V alternating current coil. Built with a 6A contact rating and solder-free construction, this model eliminates internal wiring failure points and provides high-vibration resistance, making it ideal for harsh HVACR and industrial PLC environments. The non-polarized LED indicator and mechanical flag provide immediate visual status confirmation, streamlining troubleshooting during commissioning or service calls. Its blade terminal design ensures a secure fit into standard 14-pin sockets, and the cadmium-free, silver-alloy contacts are optimized for both resistive and inductive loads, maintaining low contact resistance over a long mechanical life cycle.
Key Benefits for Technicians:
- 4PDT Contact Versatility: Direct control of four separate electrical circuits, perfect for interlocking and signal duplication.
- Instant Diagnostics: Integrated LED operation indicator and mechanical flag for fast visual health checks.
- Rugged Reliability: Solder-free internal construction minimizes physical fatigue and points of failure under thermal stress.
- Precision Switching: 6-amp rated contacts handle standard pilot duties and light motor loads with high dielectric strength.
- Simple Integration: Standard 14-pin blade style is compatible with IDEC SU series sockets for efficient DIN rail mounting.
Common Questions & Troubleshooting:
What is the maximum current rating for this relay?
The IDEC RU4S-C-A24 is rated for a 6-amp maximum switching current per pole at 250VAC or 30VDC. However, ensure the total load across all four poles does not exceed the thermal limits of your socket and housing.
How do I confirm the coil voltage?
This specific model is designed for 24V AC control circuits. The coil is color-coded; orange usually signifies an AC coil in the RU series, helping you avoid wiring DC power to an AC-rated unit.
Does this model include a manual latching lever?
No, the RU4S-C-A24 is the standard model with an indicator but does not include the manual latching lever or check button. If your application requires manual override for testing without energizing the coil, check the RU4S-A24 series.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $15.59
-65%$15.59
$5.46IDEC Relays RU4S-C-A24 Relay
