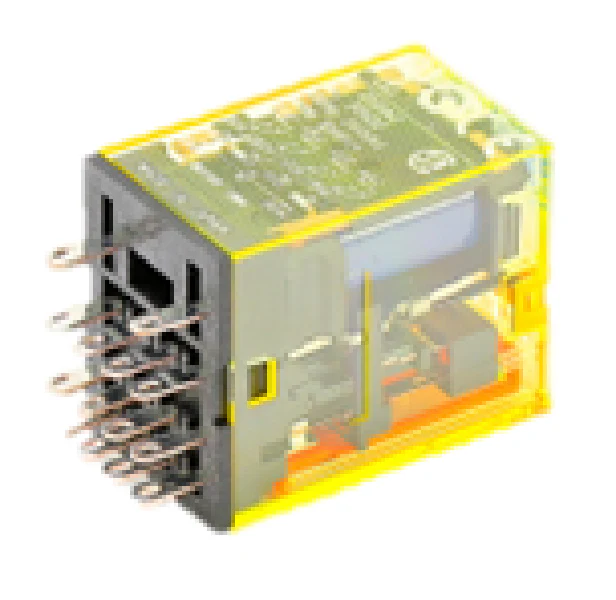

IDEC Relays RU4S-A110 Relay
The IDEC RU4S-A110 is a high-performance 4PDT universal plug-in relay designed for demanding industrial control and HVACR automation panels. Operating on a 110-120VAC coil voltage, this RU Series model features a 6A contact rating capable of handling multi-pole switching requirements in compact spaces. A key field advantage is the top-mounted mechanical indicator and the integrated non-polarized LED, which streamline troubleshooting by providing immediate visual confirmation of relay status. The inclusion of a manual latching lever allows technicians to test circuits without energizing the coil, while the color-coded levers (orange for AC) ensure easy identification in dense wiring environments. Built with bifurcated contacts and lead-free construction, this relay maintains low contact resistance and operational reliability when switching low-level signals or standard power loads. Its solder-free construction utilizes a captive wire-spring design, reducing internal heat buildup and extending the component's service life under continuous duty cycles.
Key Benefits for Technicians:- Dual Status Monitoring: Equipped with both a mechanical flag and an LED indicator for rapid diagnostics in low-light enclosures.
- Manual Override: The latching lever enables temporary or permanent circuit testing without requiring external power.
- High-Density Switching: The 4PDT configuration manages four independent circuits from a single control signal, optimizing rail space.
- Markable Identification Plate: Features a built-in tab for labeling, ensuring accurate wire mapping and circuit identification during maintenance.
- Environmentally Conscious: Completely lead-free design compliant with modern environmental standards for industrial installations.
What is the standard mounting method for the RU4S-A110?
This relay is designed for use with IDEC SY series sockets (such as the SY4S-05), which allow for standard 35mm DIN rail mounting or surface mounting with M3 screw terminals.
Does this model include protection against voltage spikes?
The RU4S-A110 utilizes a non-polarized LED that provides basic visual feedback, but it is typically used in conjunction with a socket-mounted surge suppression module if high-level inductive back-EMF protection is required.
Can the latching lever be locked in the 'on' position?
Yes, the manual lever can be flipped to lock the contacts for troubleshooting, but it must be returned to the closed position for normal automated coil operation.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
