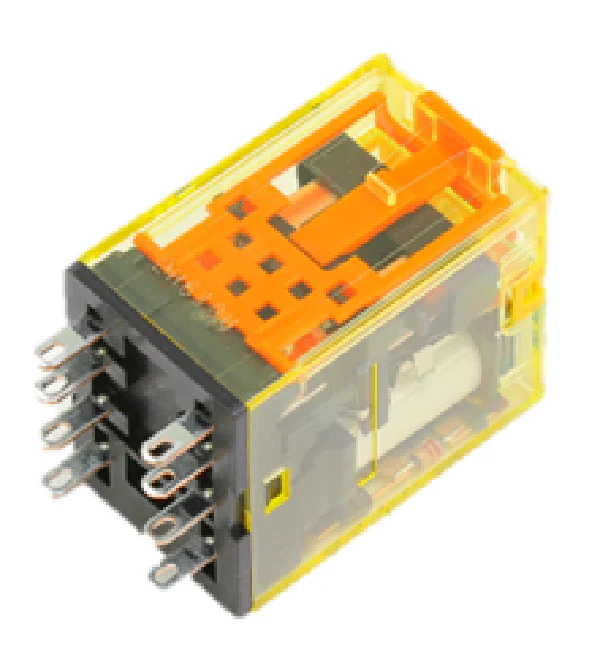

IDEC Relays RU2S-A24 Relay
The IDEC RU2S-A24 is a full-featured universal miniature relay designed for demanding HVACR control circuits and industrial automation. This DPDT relay (2 Form C) features a 24VAC coil and is rated for a 10A switching capacity, making it a reliable solution for pilot duty and motor control applications. Its solder-free construction eliminates internal wiring failures, while the mechanical flag indicator and non-polarized green LED indicator allow for immediate visual confirmation of contact status during troubleshooting. The integrated latching lever (orange for AC coils) provides a manual override for testing circuit logic without energizing the coil.
Key Benefits:
- 10A Contact Rating: Rugged DPDT configuration handles high-inrush loads common in HVAC sequencers and fans.
- Troubleshooting Efficiency: Dual indicators (LED and mechanical flag) and a manual latching lever reduce downtime during field service.
- Solder-Free Internal Structure: Lead-free, spot-welded construction enhances structural integrity and environmental compliance.
- Universal Mounting: Designed for standard 8-pin blade sockets with support for DIN rail or surface mounting.
- Snap-On Marking Plate: Simplifies panel identification in complex multi-relay control configurations.
Common Questions:
- What is the difference between RU2S-A24 and RU2S-C-A24? The RU2S-A24 includes a latching lever and indicator light, whereas the "C" variant typically signifies a standard model without a lever or check button.
- Can this relay be used for DC switching? While the coil is 24VAC, the contacts are rated for up to 30VDC, though inductive DC loads require proper external suppression.
- How do I identify the coil type at a glance? IDEC uses color-coded levers; the orange lever on this model signifies an AC coil, preventing installation errors in the field.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $13.76
-65%$13.76
$4.82IDEC Relays RU2S-A24 Relay
The IDEC RU2S-A24 is a full-featured universal miniature relay designed for demanding HVACR control circuits and industrial automation. This DPDT relay (2 Form C) features a 24VAC coil and is rated for a 10A switching capacity, making it a reliable solution for pilot duty and motor control applications. Its solder-free construction eliminates internal wiring failures, while the mechanical flag indicator and non-polarized green LED indicator allow for immediate visual confirmation of contact status during troubleshooting. The integrated latching lever (orange for AC coils) provides a manual override for testing circuit logic without energizing the coil.
Key Benefits:
- 10A Contact Rating: Rugged DPDT configuration handles high-inrush loads common in HVAC sequencers and fans.
- Troubleshooting Efficiency: Dual indicators (LED and mechanical flag) and a manual latching lever reduce downtime during field service.
- Solder-Free Internal Structure: Lead-free, spot-welded construction enhances structural integrity and environmental compliance.
- Universal Mounting: Designed for standard 8-pin blade sockets with support for DIN rail or surface mounting.
- Snap-On Marking Plate: Simplifies panel identification in complex multi-relay control configurations.
Common Questions:
- What is the difference between RU2S-A24 and RU2S-C-A24? The RU2S-A24 includes a latching lever and indicator light, whereas the "C" variant typically signifies a standard model without a lever or check button.
- Can this relay be used for DC switching? While the coil is 24VAC, the contacts are rated for up to 30VDC, though inductive DC loads require proper external suppression.
- How do I identify the coil type at a glance? IDEC uses color-coded levers; the orange lever on this model signifies an AC coil, preventing installation errors in the field.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
