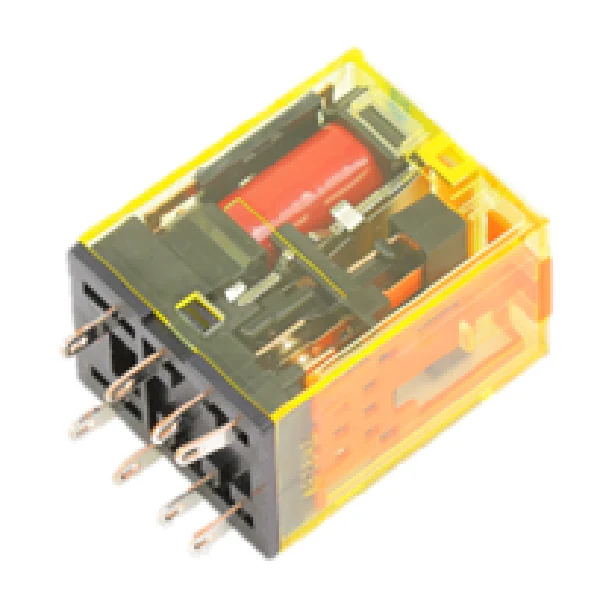

IDEC Relays RU2S-A220 Relay
The IDEC RU2S-A220 Relay is a high-performance DPDT power relay engineered for demanding industrial and HVACR control circuits. Operating with a 220-240VAC coil voltage, this RU series universal relay provides a robust 10A contact rating capable of handling substantial inductive and resistive loads. A distinct advantage for technicians is its solder-free construction, which eliminates internal wiring and weak solder points, significantly increasing mechanical durability in high-vibration environments. The unit features a manual latching lever, color-coded orange for AC coils, allowing for quick circuit testing and override without energizing the system. Visual diagnostics are streamlined via an integrated non-polarized LED indicator and a mechanical flag, providing immediate status verification during troubleshooting. Designed for socket mounting, the IDEC RU2S-A220 utilizes silver tin indium contacts to ensure high conductivity and resistance to contact welding, making it a reliable choice for motor starters, solenoid valves, and sequence control panels.
Key Benefits- 10 Amp Switching Capacity: High-capacity DPDT contacts allow for versatile control of multiple circuits.
- Enhanced Visual Diagnostics: Includes a built-in LED and mechanical indicator flag for fast status checks.
- Simplified Maintenance: The latching lever enables manual operation for commissioning and fault-finding.
- Industrial-Grade Build: Features a lead-free, solder-free internal design to withstand mechanical stress.
- Space-Saving Design: Compact 8-pin plug-in configuration fits standard RU series sockets (e.g., SM2S-05C).
What is the purpose of the orange lever on the IDEC RU2S-A220?
The orange-coded lever is a manual latching lever specifically for AC coils. It allows a technician to manually toggle the contacts to check circuit continuity or system operation without needing to apply power to the coil.
Is this relay compatible with 230V systems?
Yes, the IDEC RU2S-A220 is rated for a 220-240VAC coil range, making it fully compatible with standard 230V industrial and commercial power supplies.
Does this unit require a specific mounting base?
This is a plug-in relay designed to be used with an 8-pin socket (typically the SM2S-05C), which can be mounted via DIN rail or panel screws for secure installation.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
