IDEC Relays RTE-P2AF20 Timer

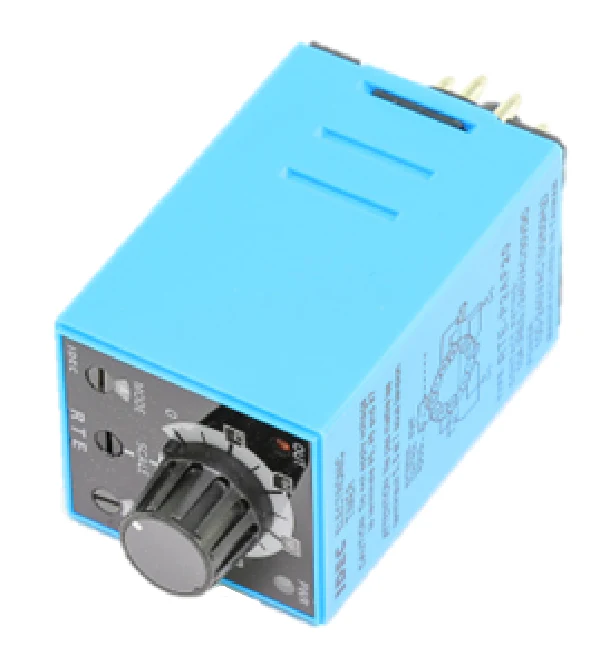

The IDEC Relays RTE-P2AF20 Timer is a high-performance analog timer relay engineered for precise industrial control logic in HVACR and automation systems. Operating on a universal 100-240Vac input voltage, this 11-pin plug-in timer utilizes a solid-state CMOS circuit to deliver a high repeat accuracy of ?0.2%. As a P2-type signal-triggered model, it offers six distinct timing functions, including ON-delay, Cycle OFF, Cycle ON, Signal ON/OFF Delay, OFF-delay, and One-shot. With 20 selectable time ranges spanning from 0.1 seconds up to 600 hours, it provides the versatility needed for complex industrial timing functions. The unit features 2-DPDT contacts rated for a 10A resistive load at 240VAC, making it a reliable solution for switching motors up to 1/3 HP. Dual LED indicators provide immediate visual confirmation of power status and output timing, ensuring efficient troubleshooting for technicians in the field.
Key Benefits- Multi-Function Versatility: Supports 10 total modes (6 on this signal-triggered model), allowing it to replace multiple single-function relays in a time delay relay application.
- Broad Time Range: Covers everything from sub-second pulses to 600-hour delays, adjustable via high-visibility rotary dials.
- Robust Switching Power: Equipped with dual 10A DPDT relay contacts, suitable for heavy-duty HVACR control circuits and inductive motor loads.
- Universal Compatibility: The 100-240VAC wide-range input simplifies inventory by covering standard residential and industrial power supplies.
- Standardized Installation: Fits industry-standard 11-pin sockets (SR3P-05 or SR3P-06) for quick replacement and retrofitting.
Which mode is best for motor soft-start delays?
For motor delay applications, the ON-delay function is typically used. For specialized cycling such as compressor protection or anti-short cycle timing, the Cycle OFF or Signal ON/OFF delay modes provide granular control over start/stop intervals.
Does this timer require a specific socket?
Yes, as an 11-pin tubular model, it is designed for use with an 11-pin DIN rail or surface-mount socket. Ensure your base matches this configuration before installation.
How do I set the specific time interval?
Use the scale selector to choose your time unit (seconds, minutes, hours) and the range selector to set the multiplier. The analog knob then allows for fine-tuning within that specific range.
