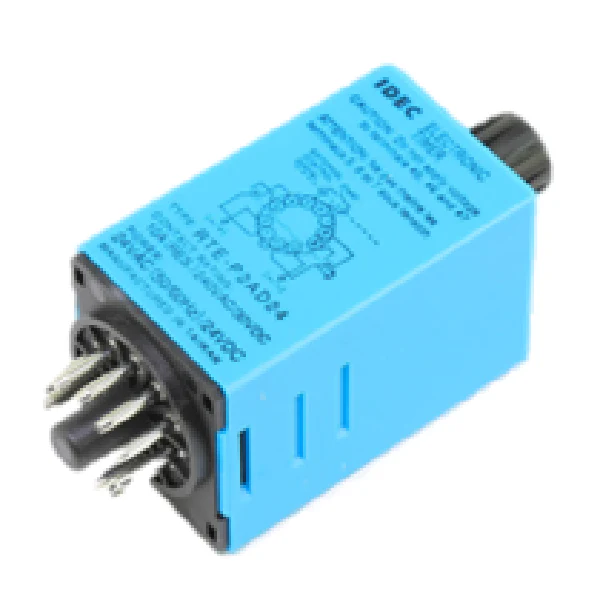

IDEC Relays RTE-P2AD24 Timer
The IDEC RTE-P2AD24 is a versatile multi-function analog timer engineered for precision control in commercial HVACR and industrial automation panels. Operating on a universal 24VAC/VDC input voltage, this 11-pin plug-in relay provides reliable timing solutions across six distinct operation modes, including ON-delay, Cycle OFF, Cycle ON, Signal ON/OFF Delay, OFF-delay, and One-Shot. Featuring 2-DPDT (Double Pole Double Throw) contacts rated for 10A, the RTE-P2AD24 ensures robust switching performance for heavy-duty inductive loads. Contractors value this unit for its high repeat accuracy of ?0.2% and its ability to consolidate multiple timing functions into a single analog timer relay, reducing truck stock requirements. The intuitive front-mounted dial allows for immediate field adjustments, while the LED indicators provide clear status feedback for power and output. Whether managing compressor short-cycle protection or sequencing air handling units, this IDEC RTE series timer delivers the durability required for demanding mechanical environments.
Key Benefits
- Versatile Operation: Supports six field-selectable timing functions, making it a universal solution for delayed start and cycling applications.
- Robust Contact Rating: 10A DPDT contacts provide the capacity to handle diverse control circuit requirements without external power relays.
- Wide Timing Range: Adjustable scales ranging from 0.1 seconds to 600 hours ensure compatibility with virtually any process control sequence.
- Simplified Installation: The standard 11-pin base configuration allows for rapid replacement and integration into existing control panels.
- Reliable Performance: High resistance to vibration and physical shock ensures long-term stability in high-mechanical-stress HVAC environments.
Common Questions
Can I use this timer for both AC and DC control circuits?
Yes, the IDEC RTE-P2AD24 is designed with a dual-voltage internal power supply that accepts 24VAC or 24VDC, providing flexibility for different HVAC control transformer outputs.
How do I change the timing mode on the RTE series?
The operating mode is selected via the recessed rotary switch located on the front face. Ensure power is disconnected before changing modes to allow the logic controller to reset to the new parameters.
What is the difference between the RTE-P2AD24 and the RTE-B series?
The RTE-P series utilizes an 11-pin terminal circular base, whereas the B series typically refers to blade-style or different mounting configurations. Verify your socket type before installation.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
