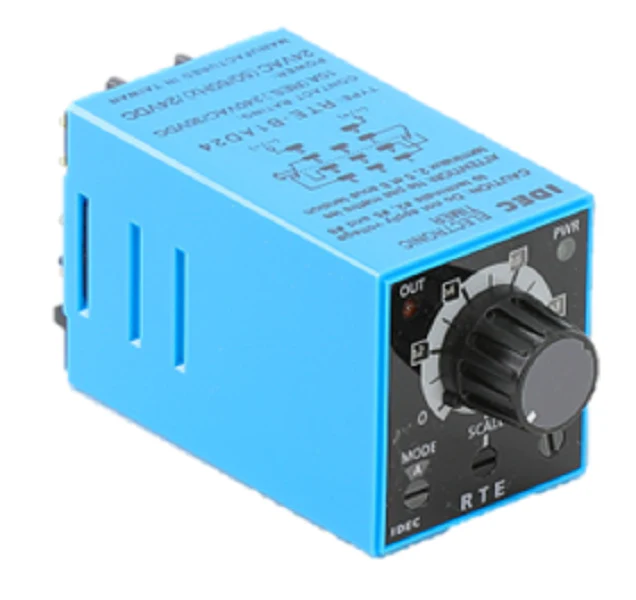

IDEC Relays RTE-B1AD24 Timer
The IDEC RTE-B1AD24 timer is a high-performance analog timer designed for critical HVACR and industrial control applications. Built on a solid-state CMOS circuit operation, this multi-function timer supports 20 time ranges spanning from 0.1 seconds up to 600 hours, providing the precision required for complex sequence operations. This specific model is power triggered, offering versatile functionality including ON-delay, interval, cycle OFF, and cycle ON modes. Engineered with dual DPDT contacts (2 Form C) rated at 10A, it handles heavy inductive and resistive loads with ease. The blade terminals ensure a secure, plug-in connection to standard 11-blade sockets like the SR3B-05. With a wide 24Vac/24Vdc input voltage range and a high repeat accuracy of ?0.2%, the RTE-B1AD24 provides reliable, long-term performance for building automation and process control systems.
Key Benefits- Multi-Function Versatility: Four power-triggered modes (ON-delay, Interval, Cycle OFF, Cycle ON) allow for standardized inventory across multiple applications.
- Wide Timing Range: Scalable settings from 0.1s to 600h accommodate everything from rapid equipment cycling to long-duration delay tasks.
- High Load Capacity: Robust 10A DPDT contacts allow for direct control of small motors, contactors, and solenoids without secondary relays.
- Dual Voltage Input: Operates on both 24V AC and 24V DC, reducing part number requirements for field service technicians.
- Visual Diagnostics: Integrated LED indicators provide immediate status updates for Power ON and Timing OUT conditions.
How do I change the timing function on the IDEC RTE-B1AD24?
The operating mode and time scale are adjusted via two recessed rotary switches on the front face of the unit. Use a small screwdriver to select the desired function (A, B, C, or D) and time range before applying power.
What is the difference between the RTE-B1 and RTE-B2 models?
The RTE-B1 is a power triggered timer, meaning the timing sequence begins immediately when input voltage is applied. The RTE-B2 is signal-triggered and requires a separate start input to initiate the timing cycle.
Can this timer be mounted directly to a DIN rail?
The unit itself is a plug-in blade terminal type. It must be paired with an 11-blade socket (such as the IDEC SR3B-05) for DIN rail or surface mounting.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
