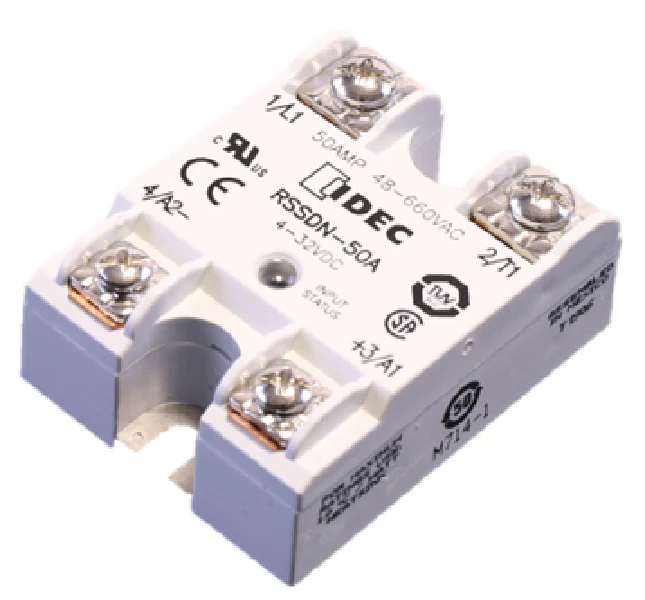

IDEC Relays RSSDN-50A Relay
The IDEC RSSDN-50A is a high-performance panel mount solid state relay engineered for demanding HVACR and industrial automation switching. This RSS Series SSR features a 50A continuous output current rating, making it an ideal solution for resistive load switching in commercial refrigeration and HVAC heating elements. Designed with a broad 3-32VDC input control voltage range, it ensures seamless integration with most PLC and thermostat controllers. The integrated input status LED indicator provides immediate visual diagnostics, reducing troubleshooting downtime in the field. Built with a high dielectric strength and zero-cross switching capability, the RSSDN-50A minimizes electromagnetic interference and thermal stress on downstream components. Its robust construction facilitates superior heat dissipation when paired with an appropriate heatsink, ensuring long-term reliability in high-cycle applications without the mechanical wear associated with traditional contactors.
Key Benefits- High Amperage Capacity: Supports up to 50A continuous output for heavy-duty HVACR electrical loads.
- Optically Isolated Design: Protects sensitive control circuitry from high-voltage transients on the load side.
- Zero-Voltage Turn-On: Reduces inrush current and electrical noise, extending the life of heating elements and motors.
- Compact Footprint: Standard hockey puck SSR form factor allows for straightforward replacement in existing control panels.
- Visual Diagnostics: Built-in LED provides real-time verification of the control signal status.
Is a heatsink required for the RSSDN-50A?
Yes, when switching loads near the 50A rating, a properly sized heatsink is necessary to manage thermal dissipation and prevent derating or failure.
Can this relay be used for inductive loads?
While optimized for resistive loads, it can handle inductive loads if proper snubbers and MOVs are utilized to manage back-EMF, though derating the amperage is recommended.
What is the benefit of the 3-32VDC input range?
This wide window allows the relay to be triggered by a variety of sources, including 5V TTL logic, 12V automotive systems, or 24V industrial control loops.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $45.38
-65%$45.38
$15.88IDEC Relays RSSDN-50A Relay
