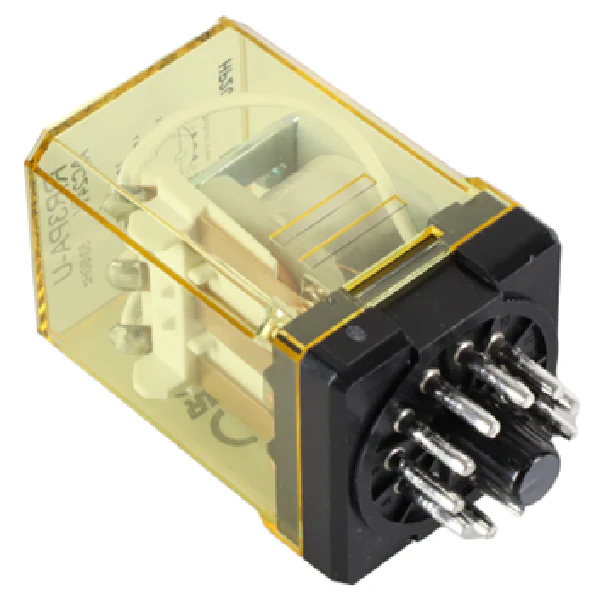

IDEC Relays RR3PA-UAC24V Relay
The IDEC RR3PA-UAC24V is a heavy-duty 3PDT general purpose power relay designed for reliable switching in industrial HVACR control circuits. Operating on a 24VAC coil voltage, this RR series relay features a robust 11-pin octal base configuration, ensuring secure seating in standard DIN rail mount sockets. With a 10A contact rating at 240VAC/30VDC, it is engineered to handle inductive loads and motor starting applications where high-capacity switching is required. The silver tin oxide contacts provide excellent conductivity and resistance to welding, while the transparent dust cover allows for easy visual inspection of the contact state. Professionals often specify this plug-in relay for its mechanical indicator and standard pin layout, which simplifies troubleshooting and field replacement in complex control panels. Whether integrated into automation sequences or safety interlocks, the RR3PA-UAC24V delivers consistent performance across high-cycle environments.
Key Benefits
- 10A Switching Capacity: Capable of handling high-current HVACR components and industrial machinery.
- 3PDT Contact Configuration: Allows for simultaneous control of three separate circuits, maximizing panel efficiency.
- Standard Octal Base: Compatibility with SR3P-05 or SR3P-06 sockets for rapid installation and maintenance.
- 24VAC Coil Logic: Seamlessly integrates with standard low-voltage thermostat and transformer outputs.
- Rugged Construction: Built for high-frequency operation with a focus on mechanical durability and thermal stability.
Common Questions
What is the difference between the RR3PA and RR2PA models?
The RR3PA utilizes a 3-pole double throw (3PDT) configuration with 11 pins, whereas the RR2PA is a 2-pole (DPDT) version with 8 pins. Ensure your socket matches the 11-pin count before installation.
Can this relay be used with DC voltages?
While the contacts are rated for both AC and DC loads, this specific model features a 24VAC coil. Supplying DC voltage to the coil will result in failure to actuate or coil burnout.
Are there built-in check features for testing?
Most RR3PA series units include a mechanical indicator flag to show contact position, allowing technicians to verify state without a multimeter during live sequence testing.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
