IDEC Relays RR2P-UAC24V Relay

IDEC Relays RR2P-UAC24V Relay

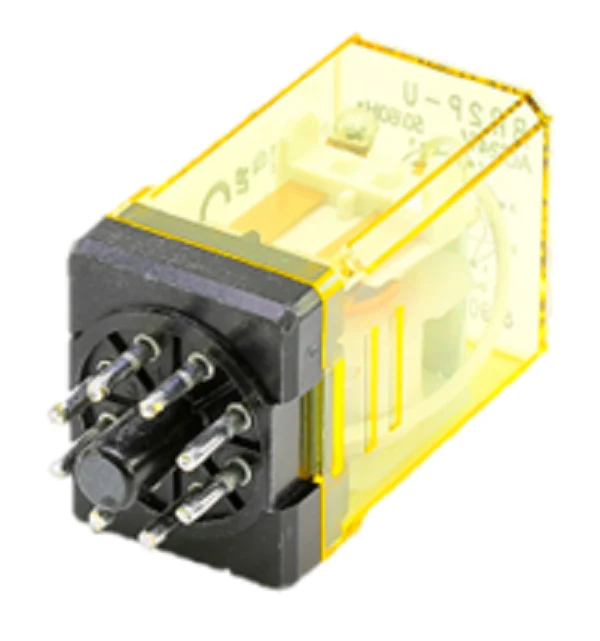

The IDEC RR2P-UAC24V is a heavy-duty, general-purpose DPDT power relay designed for consistent performance in demanding industrial and HVACR control circuits. As part of the respected RR Series, this 8-pin octal relay features a 24VAC coil and a 10A contact rating, making it a standard choice for switching resistive and inductive loads. The unit is engineered with silver alloy contacts to minimize contact resistance (30m? initial) and extend the electrical life of the component across thousands of cycles. With its midget standard footprint and plug-in pin terminals, this relay integrates seamlessly into standard 8-pin circular sockets, allowing for rapid field replacement and reduced downtime in control panel applications.

Technical Specifications:

  • Configuration: Double Pole Double Throw (DPDT) / 2 Form C.
  • Coil Voltage: 24VAC (50/60Hz).
  • Contact Rating: 10A at 240VAC/30VDC (Resistive).
  • Terminal Type: 8-Pin Tubular (Octal) Pin Terminals.
  • Operating Temperature: -22°F to +158°F (-30°C to +70°C).
  • Horsepower Rating: 1/4 HP at 120VAC; 1/3 HP at 240VAC.
  • Safety Certifications: UL recognized, CSA certified, and CE marked.
Key Benefits for Contractors:
  • High Switching Capacity: The 10-amp rating ensures reliability when managing HVACR control relays and small motor loads.
  • Rugged Construction: Built to withstand vibration and harsh environments, maintaining a mechanical life of 10 million operations.
  • Universal Compatibility: Standard 8-pin relay base fits most prevailing industrial sockets, simplifying inventory management.
  • Efficient Troubleshooting: The translucent housing allows for quick visual inspection of the coil and contact state.
Common Questions:
  • Is the IDEC RR2P-UAC24V compatible with standard DIN-rail sockets? Yes, it is designed for use with IDEC SR2P series or any standard 8-pin octal mounting socket, supporting both DIN-rail and surface mounting.
  • Can this relay handle inductive motor loads? Absolutely. It is rated for 1/3 HP at 240VAC, making it suitable for small fan motors and solenoids.
  • What is the typical response time? This relay features a maximum operating and release time of 25ms, ensuring rapid response in industrial machine control sequences.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
