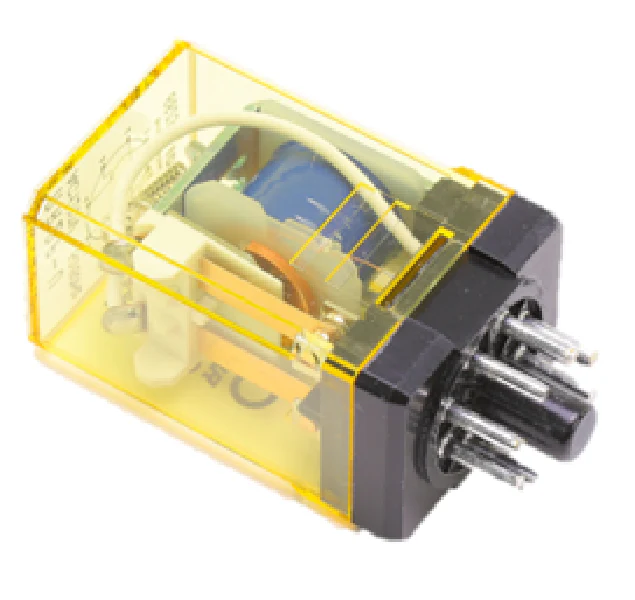

IDEC Relays RR2P-UAC120V Relay
The IDEC RR2P-UAC120V relay is a heavy-duty 8-pin octal relay designed for demanding HVACR and industrial control applications. This DPDT 120VAC power relay features a 10A contact rating, making it a reliable choice for switching inductive loads like motors, solenoids, and fan coils. Built with pure silver contacts, the RR series power relay ensures low contact resistance (30m? max) and high conductivity throughout its 10-million-cycle mechanical service life. The midget power relay design is optimized for space-constrained control panels while maintaining a robust horsepower rating of 1/4 HP at 120V AC. Its tubular pin terminals provide a secure, vibration-resistant interface when paired with standard 8-pin relay sockets such as the SR2P-05 or SR2P-06. With UL recognition and CSA certification, this IDEC 10 amp relay serves as a direct professional-grade solution for logic-level switching and basic motor control in building automation systems.
Key Benefits- High Switching Capacity: Reliable 10A DPDT contacts accommodate both resistive and inductive industrial loads.
- Industrial Durability: Engineered for 10,000,000 mechanical operations, reducing downtime in critical HVACR cycles.
- Thermal Resilience: Operates efficiently in temperatures ranging from -22°F to +158°F, ideal for mechanical rooms.
- Standardized Fit: 8-pin tubular base simplifies replacement in existing control circuits using octal sockets.
- Low Maintenance: Pure silver alloy contacts resist oxidation and pitting during frequent switching cycles.
What is the difference between pin and blade terminals for the RR series?
The "P" in RR2P denotes pin-style (8-pin octal) terminals, which require a matching circular socket. Blade-style terminals (RR2B) use a rectangular plug-in configuration typically found in different mounting footprints.
Can this relay be used for DC loads?
Yes, while the coil is rated for 120VAC, the contacts are rated for up to 30V DC at 10A, making it suitable for hybrid AC/DC control circuits.
How do I test the coil integrity?
Using a multimeter, verify the coil resistance; for the 120VAC model, the resistance should be approximately 2.1kΩ to ensure the winding has not shorted or opened.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $13.05
-65%$13.05
$4.57IDEC Relays RR2P-UAC120V Relay
