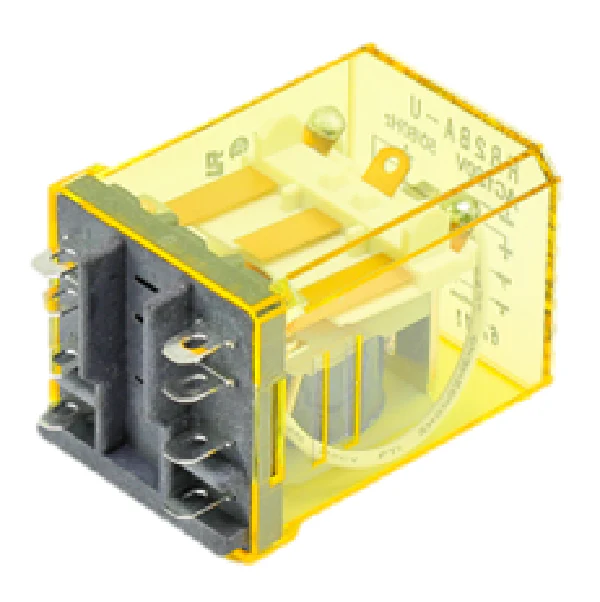

IDEC Relays RR2BA-UAC120V Relay
The IDEC RR2BA-UAC120V is a heavy-duty, 120Vac power relay engineered for reliable performance in industrial control panels and HVACR systems. This DPDT (Double Pole Double Throw) relay features silver contacts that handle 10A resistive loads, making it a rugged choice for switching motors, solenoids, and complex control circuits. Part of the IDEC RR Series, it is designed for socket mounting using 8-blade terminals, which simplifies field replacement and reduces downtime for technicians. With a mechanical life rating of 10 million operations and high vibration resistance, it ensures stable operation in high-demand environments. The unit is UL recognized and CSA certified, meeting strict safety standards for commercial and industrial applications. Whether you are managing sequence control or small motor loads, this general-purpose relay provides the contact reliability and dielectric strength required for professional-grade electrical installations.
Key Benefits- 10A Switching Capacity: Capable of handling significant resistive and inductive loads, including 1/4 HP at 120V AC.
- Silver Contacts: Optimized for high conductivity and long-term durability in power relay applications.
- Standard Blade Terminals: Fits common 11-blade plug-in or 8-blade sockets for rapid installation and diagnosis.
- Industrial Build Quality: Features a 25ms maximum operating time and robust DPDT configuration for multi-circuit control.
- Global Standards Compliance: CE marked, UL recognized, and CSA certified for use in international projects.
What is the difference between the RR2BA and the RR2P?
The RR2BA-UAC120V uses blade terminals for socket mounting, whereas the RR2P variant typically utilizes pin terminals. Always verify your socket type before ordering.
Can this relay be used for motor control?
Yes, it is rated for 1/4 HP at 120VAC and 1/3 HP at 240VAC, making it suitable for small fan motors and pump applications common in HVACR.
What is the nominal coil resistance?
The 120V AC coil has a nominal resistance of approximately 2.1k ohms, ensuring efficient power consumption during continuous duty.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
